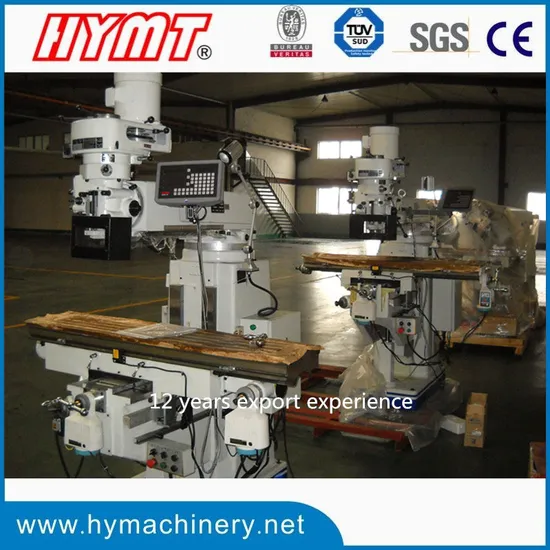

X6330A High quanlity Universal turret milling machine

Product Description

Vertical Milling Machine (X6323A, X6325, X6325D, X6333, X6330A) MAIN FUNCTIONS: Our milling machines has passed the strict CE certification and had already got the CE certificate. Our factory also get the ISO certificate. Our universal turret milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price. Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life. 1.CE and ISO certificate 3.Taiwan head & 3 axes Taiwan shi-min leadscrews 4.Easy operation 5.Perfect painting X6323 FEATURES: Double 55° Swallowtail guide way is adopted on both Y, Z-axis, so it is easy to adjust and repair. Adopted strengthen rib on both sides of the column that makes the machine rigidly and beautiful. X6323B FEATURES: 55° Swallowtail guide way is adopted on Z-axis, and rectangular guide way on Y-axis; Adopted strengthen rib on both sides of the column, that makes the machine rigidly and beautiful. X6325 FEATURES: Rectangular guideway on Y and Z-axis is featured a good rigidity and stability. The guideway on saddle is lined with TF wear. X6325B FEATURES: Rectangular guideway on Y-axis and 55° Swallowtail guideway on Z-axis. It makes the machine stably and easy to adjust; The guideway on saddle is lined with TF wearable material. X6325C FEATURES: Fixed structure is used to connect the mill head without ram, which makes the cut intensity will; Rectangular guideway on Y-axis and 55° Swallowtail guideway on Z-axis. It makes the machine stably and easy to adjust; The guideway on saddle is lined with TF wearable material. X6325D FEATURES: Rectangular guideway on Z-axis is featured a good rigidity and stability. The guideway on saddle is lined with TF wearable material. XU6325 FEATURES: Rectangular guideway on Y and Z-axis is featured a good rigidity and stability. X, Y axis motor 250w. Feed rate: 15, 23, 33, 48, 78, 114, 166, 257(8kinds). X6330A FEATURES: Fixed structure is used to connect the mill head without ram, which makes the cut intensity well;Rectangular guideway on Z-axis is featured a good rigidity and stability;The guideway on saddle is lined with TF wearable material. X6333 FEATURES: Rectangular guideway on Z-axis is featured a good rigidity and stability; The guideway on saddle is lined with TF wearable material.

MODEL

X6323A

X6325

X6325D

X6333

X6330A

Table size

230*1067(9*42) 230*1246(9*49)

254*1270(10*50) 254*1370(10*54)

254*1270(10*50)254*1370(10*54)

330*1370(13*54) 330*1500(13*60)

305*1370(12*54) 305*1500(12*60)

Long travel(mm)

650 840

850 950

850 950

840 1000

870 1000

Cross travel(mm)

305

420

420

368

380

Vertical travel(mm)

400

420

420

450

430

T-slot No.and size(mm)

3*16

Ram travel(mm)

312

470

470

500

500

Distance from spindle nose to table surface(mm)

0-415

0-405

0-405

0-450

0-350

Spindle hole taper

Standard:R8 Optional:ISO30/ISO40

Standard:R8 Optional:ISO30/ISO40

standard:ISO40

standard:ISO40

standard:ISO40

Spindle travel(mm)

127

Spindle speed(r.p.m)

standard: shift grade 16: 50HZ65-4500,60HZ80-5440

standard:50HZ:65-4500, 60HZ:80-3750

optional:variable:65-4500

optional:variable:65-4500

optional:variable:65-3750

optional:variable:65-3750

optional:variable: 65-3750

Auto.quill feed

Three steps:0.04(0.0015)/0.08(0.003)/0.15(0.006'')mm/revolution

Spindle motor

2.25kw/3hp

2.25kw/3hp

3.75kw/5hp

3.75kw/5hp

3.75kw/5hp

Head swivel

90°

Head tilting

45°

Dimension of package

One miller per case

1400*1476*2030

1516*1550*2080

1516*1550*2080

1800*2016*2180

1566*1650*2080

Two miller per case

1450*1570*2080

1650*1790*2170

1650*1790*2170

1800*2200*2180

1720*1800*2175

Three miller per case

1450*2180*2080

1650*2285*2235

1650*2285*2235

G.W/set

1100

1550

1590

2300

1750

Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

---
