Product Description
Product Description

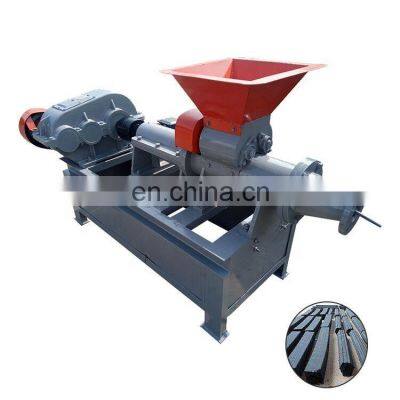

charcoal dust briquette press machine
Product Description
Machine introduction of the charcoal dust briquette press machine
♦1. Coal bar machine is made of powdered coal strip fast machines of different shapes.
♦2. Its working principle is: V-belt to power the motor to pass through transmission, the transmission output shaft coupling the power to pass through the floating propeller shaft, propeller shaft drive to promote coal material introduced by the molding die, while production of the ideal high-pressure coal.
Product Application
Finished production of the charcoal dust briquette press machine
1. Shapes of the final charcoal or coal briquettes can be round, square, hexagon, quincunx and so on.
2. We can also customize different molds for you according to the customers’ requirements. Besides, the length of the charcoal briquettes is also adjustable which is up to our customers’actual demands.
Technical parameters of the charcoal dust briquette press machine
Model
| Motor(kw)
| Output (t/h)
| Weight(t)
| Rotation rate (rpm)
| Dimension (mm)
|
SL-140
| 11
| 1~2
| 1.2
| 60
| 1900×1100×1170
|
SL-180
| 22
| 2~3
| 2.5
| 60
| 2210×1370×1440
|
SL-300
| 90
| 5~6
| 4.5
| 132
| 3605×1025×955
|
SL-450
| 220
| 9~12
| 7.5
| 132
| 5130×1520×1480
|
Production line of the charcoal dust briquette press machine
Schematic diagram of charcoal dust briquette press machine production line
Related machine production line
Packaging & Shipping
Our Factorty
Company Information
Zhengzhou Shuliy Machinery Co., Ltd was found in 2000. Our company specializes mainly produce Recycling and environmentally friendly processing machines, cardboard shredder machine, egg tray making machine, woodworking machine, aerators, toothpicks making machine, feed processing machinery, charcoal processing machinery and so on. We not only provide customers with cost-effective products, but also provide first-class service support and solutions. Shuliy has passed SGS, ISO, TUV, CE, BV and other certifications. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.
our customers
Buyer Feedback
FAQ
Q1: Is the shape replaceable?
A1:Of course. Just change the mold.
Q2: Do you need an adhesive? What is the adhesive? What is the function?
A2: The local starch ACTS as a binder, making the carbon stronger and less susceptible to damage, allowing it to burn longer and more fully
Q3:How to make the best charcoal?
A3: Toner fineness and adhesives.
Q4:Can the cutter adjust the speed?
A4:The cutter is an induction system that can adjust the speed according to the length of the final carbon
