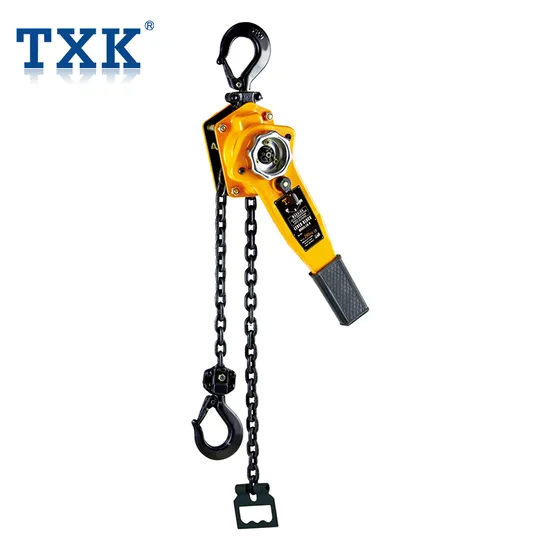

3 Ton Professional Manufacturer Pulley Leve Block

Product Description

3 Ton Professional Manufacturer Pulley Leve Block
Product Features:
1.Super Grade100 load chain-Wafios link, DIN standard.
2.Forged and Heat Treated load Hooks with batch traceability and stretch indicatiors
3.360° Handle rotation with stroke to ratchet indicators
4.Double pawl Brake system
5.Asbestos Free Brake Linings
6.Forged Safety Latch
7.Sealed Roller Bearings
8.100% Load Tested to 1.5xWLL
9.MBL of 400% of WLL
10.2000 Cycle Batch Test
Technical Specifications:

Model - LB-B		75	100	150	200	300	600
Capacity (ton)		0.75	1	1.5	2	3	6
Standard Lifting Height (m)		1.5	1.5	1.5	1.5	1.5	1.5
Running Test Load (t)		1.13	1.5	2.25	3	4.5	9
Pulling Efforts (kg)		15	20	18	24	38	39
Chainfall		1	1	1	1	1	2
Load Chain Diameter(mm)		6.3	6.3	7.1	8	9	9
Net Weight(kg)		6.9	7.1	9.4	10.1	16.3	27.2
Dimensions (mm)	A	148	152	161	168	191	191
	B	128	128	148	148	180	243
	C	295	310	335	350	405	550
	D	256	256	368	368	368	368
	G	45	48	52	60	66	80

Company Profile:
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipment with more than 15 years experience and hard work.
Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.We are:
The NO.1 sale in domestic for 5 consecutive years.
The No.1 export sales in the same industry for 5 con consecutive years.
Package&Shipping:
Carton boxes are neatly placed in the workshop, and each plywood case comes with operating instruction, inspection report, packing order.
When the capacity reaches 3 ton,we use plywood case.When you order 3 sets or more quantity,we usually use a pallet to prevent the goods from damage.This will be easy to arrange shipment.
Certificates:
Our company obtained the approval of ISO9001 and CE certification from Europe.
And our products have been exported to Europe,America,the Middle East,Africa and Southeast Asia.
Product Presentation:
TXK Brand:
TXK Brand products include:
1.Electric hoist from 0.25 tons to 50 tons,
2.Manual Chain Hoist from 0.25 tons to 20 tons,
3.Manual Lever Block from 0.25 tons to 9 tons.
4.Crane series.
5.Related Lifting Equipment(Lifting Clamp,Trolley,Hand Pully Block,Hand Winch...)
6.Pendant Control and Remote Control
FQA:
Q: What's MOQ?
A: MOQ can be 1 set.
Q: How about your payment terms?
A: T/T 100% before production.Or 30% deposit, the balance after B/L copy, we accept T/T and L/C at sight.
Q: What information should I provide if I want to order the products?
A: The information such as the lifting capacity, lifting height, power supply or other specifications you give us will be more appreciated.Inquiry now!
Q: What is your lead time for your goods?
A: Normally within 7 working days after receiving the payment.
7 reasons to trust TXK:
1.Longest history and longevity - TXK is one of the oldest established electric chain hoist manufacturers in China,with almost 20 years.
2.Largest factory and production capability - TXK factory is the biggest factory covering more than 56,000 square meters territory.
3.Widest products and service providing - TXK can provide widest products items include electric&manual lifting equipment.
4.Richest experience in world business - TXK has more than 10 years experience on international trade business.
5.Fastest lead times - TXK factory is equipped with most efficient producing line which handled by skillful workers.
6.Fullest certifications - TXK factory and products are well certified by CE,GS,TUV,ISO,SGS,etc.
7.Highest reputation - TXK products are well sold in more than 50 countries.

---
