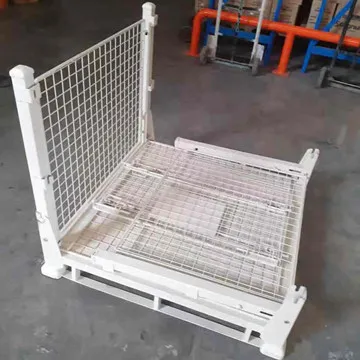

Metal Box Folding Storage Cage

Product Description

1. Product Introduction:
Metal box folding storage cage is a kind of heavy type steel containers produced by large-tonnage precision punching equipments and welded together by imported CO2 welding machine. The maximum loading/ holding capacity can be designed up to 2000 kg while stacking 4 high. The stillages pallet cages/containers are made of welded wire mesh panels, fixed with tubular steel corner posts or steel angle corner posts. This special design ensures products safety in storage and transportation. This steel stillages / containers are stronger, more durable and beautiful products. The collapsible structure of panels can save space when not in use. Collapsible wire stillage is widely used in auto-parts assembly industry and other fields, which is used for holding and transporting in the automotive industry and other fields.
2. Product Specificaitons: Metal box folding storage cage

Model No.	Exterior Dimension	Grid Size	Loading Capacity	Stacking	Loaded in 1x40'HQ
	LxWxH(mm)	mm	kg		sets
CALIN-C1	1100x1150x1000 or customized	50x50	1200	4 high	140
Material	Mild steel Q235
Application area	Warehouse, logistic, recycling, auto industry, etc.
Finish	Zinc/hot dip galvanized/powder coating
Remark	Costomized or OEM support
Productfeatures	1.Collapsible-save space when not in use,ideal for return journeys
	2.Standard half-hinged gate access
	3.Long lasting,economical alternative to disposable packing
	4.Open wire mesh design allows for full visibility for inventory checks,ventilation and cleaness.

3. Product Features:
Metal box folding storage cage Product Features:
1. Foldable and stackable for storage
2. Bright electro zinc plated finish or powder coating
3. Smooth sunning nylon, pp castor with roller bearing
4. Strong reinforced design
5. Available with 2,3 or 4 sides and optional shelves
6. Hygienic-can be steam cleaned or pressure washed
7.Security option available 4. Structures and Benefits of Using:
The containers can be stacked to save space: They can be stacked to 4 layers to achieve three-dimensional storage. And the side door can be opened when stacked.

The metal containers can be collapsible when not used. A man can easily handle it by himself. It can also be folded to save space.
Spot welding structure makes the cage strong and durable. The stackable and collapsible containers are strong, durable and light in weight.
It is easy to load goods by using hydraulic trucks. The collapsible containers can be operated easily with hydraulic trucks, forklifts, elevators and other handling equipment. And the fork can enter goods from all direction

---
