Automatic Environmental Control Broiler and Layer Chicken Farm in Africa

Product Description

modern and advanced automatic poultry equipment for broiler chicken

Product Description
In modern poultry production, nipple drinkers have been proven to be a reliable and hygienic solution for the supply of water. It is consisted by water front parts, drinking system, hanging system, regulator and water line end parts .

No.	Composition	Description
1	Head of drinking system	Waterline front-end component is the starting point of water into the henhouse installed in the water and between drinking fountains, it can assure reasonable stable supply pressure and stable water quantity. General component installation in front waterline operating room.
2	Drinking Nipple	1). The ladder on stem configuration design to form gradually variable &safe- durable, can meet different size chicken water demand. 2). Free fluctuation activity 360-degree lower stem structure design, gently touches water to chickens can be more care. 3). A double seal structure more suitable for various water quality. 4). Use good quality engineering plastic for outer, for the inner, Corrosion resistance best quality stainless steel, the service life can last up to 10 years
3	Suspension lifting devices	1). Let the chicken be the reasonable water level. 2). The whole waterline simultaneously lift, easy operation and simple. 3). Using special lift winch, using the principle DongHuaLun fluctuation, lifting smoothly and saves time and effort.
4	Pressure regulating devices	1). Let different day age chicken are the most suitable drinking-water pressure. Pressure regulating effect stable high sensitivity, water supply adequate and uniform. 2) . XianShiGuan have ball float water level, convenient for observation, humanized design makes its remove cleaning more convenient 3). Optimized rational recoiling stem configuration, flexible, practical, and for natural recoil the supply pressure, the more effectively remove impurities, protect within waterline water line.
5	Nipple cup	1). Bright-coloured color design, arouse the chicken's drinking water interest. 2). Cup inside sleek arc design, make the nipple falling water splashed choosing, ensure the ground or padding dry, avoid bacterium, prevent disease .
6	Prevent habitat device	1). In stock line and waterline above, taut fine steel wire, can prevent chicken stock line or standing in the waterline. 2). This device can protect stock line and prevent damage, chicken excrement into stock line or waterline cause pollution. 3). Due to prevent habitat device is taut function, can assure stock line and waterline doesn't appear crooked.

Head of Drinking System Parts Including
No.	Part name	Function
1	pressure regulating valve	Adjust water system pressure, protect the water system, to satisfy the breeding needs.
2	Water filters	Eliminate impurity in water, prevent nipple obstruction.
3	Water meter	Used for measuring water consumption.
4	Chemical Feeder	Accurate to drinking water systems add water-soluble drugs to prevent livestock diseases.

Nipple Drinking Line System Function:

•Certain water pressure water transported to drinking water square tubes, then by chicken touches water, drinking nipple to
automatically feed water, water function.
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
Detailed Photos

Suspension lifting device
Correct height for drinking system is very important for
chicken (both higher and lower can effect chicken bone's distortion, it's bad for chicken growth, and also can
have some water wasting), it's very easy to adjust drinking system's height if use this system.
Nipples

Use good quality engineering plastic for outer, for the inner,
we use good quality stainless steel. All nipples are anti-
rusting, service life over 10 years.
Double-sealing structure, with good seal ability, can avoid
leaking water and avoid to effect the chicken house for leaking Valve rod is movable in 360degree, it's suitable for all chicken to drink.

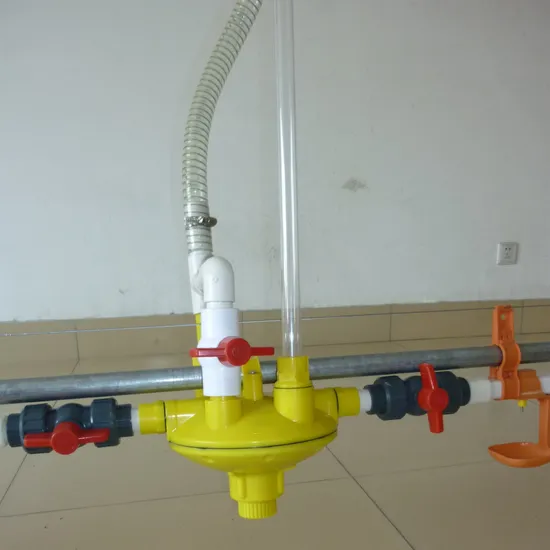

Pressure regulator
(double barreled with large flow capacity)

Advantage of the pressure regulator: Regulating stability
High switching performance Water supply is suffi cient & equality Recoil cleaning with good cleaning result, and can save time and save water.
Good quality movable valve, it's easy to change.


Water cup
Nipple capacity ability
Broiler: 8-12/nipple
Reserve layer: 12/nipple
Reserve turkey: 20/nipple
Duck: 10 /nipple
Breeder: 10/nipple

Water display level tube
Use high transparency & impact resistant material.
It's sturdy and durable, and convenient to watch water level. This device with advanced design, it's very easy to take down and clean.
Doser
1. Can add medicine into drinking system automatically.
2. Don't use power. It's economical and reliable.
3. Accurate, after setting, it can adjust medicine volume
according to water pressure change.
4. It's easy to control and maintain, with good corrosion
resistance.


Products we can supply

No.	Product name	Related spare parts avaIlable or not
1	Main stock line system	Yes
2	feeding system	Yes
3	Nipple drinking system	Yes
4	Ventilation system	Yes
5	Cooling pad system	Yes
6	Environment control system	Yes
7	Spraying system	Yes
8	Spraying accessories	Yes
9	Heating system	Yes
10	Swine/pig poutry equipment	Yes
11	Design control steel structure shed	Yes

Our services
1. Site selection of standardization chicken farm.
2. chicken house design.
3. Construction guidance.
4. Breeding worker training.
5. On site technology instruction.
6. Lifetime technical support.

Our Advantages
Advantages to use our automatic poultry equipment :
1. Time saving
2. Labour saving
3. Increasing chicken living rate.
4. High quality to ensure non stopping running of your house.
5. Comparatively cheap price.
6. We have full after-sales-service. And if you found any defective product, excluding improper use, we would offer
replacements ervices.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
2. Why should u buy from us not from other suppliers?
We are professional supplier of poultry equipment, we have exported to different countries for many years.
Our quality is competitive with USA and EU. Our feed pan, feed pipe, Nipples (Same quality as "Lubing" brand ), and other
spare parts are best quality in China market.
Our clients never take any complaint from customers, we are real " ZERO" complaint.
We ensuring the rights and interests of consumers, selling with integrity, and producing high-quality products.
4. Do you accept sample order or small order?
Yes, we supply sample order for customer as well.
5. Do your sample is free or not?
Sample we can supply free of charge, the courier cost will bear by yourself.
When you place order, we can reduce this cost from payment.
6. Can we have our logo on the product?
Absolutely! As long as ordered quantity meets and provide us with your drawing, we are able to place your logo on the product.
7. Can we place order fromthis link directly?
Yes, no problem.
Price of this link just for customers reference, welcome contact us for further specifications and detailed price list!

---
