Agricultural Tractor Farm Field Spraying Drawn Power Farmland Pesticide Plant Agriculture Sprayer Equipment

Product Description

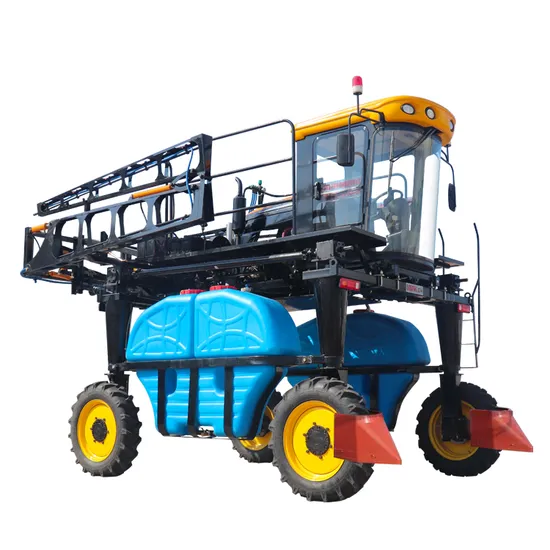

3WPZ-1200G Type Self Propelled Spray Boom Sprayer 3WPZ-1200G series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain.
Also for lawn,fruiter,vegetable, road side tree. The capacity could be 1520L, the spraying width could be 16m.
Advantages:
•This kind of boom sprayer is a tractor mounted sprayer.
•Wide working scope,spraying for bean,cotton,corn etc.
•Wide spraying with to be 16m.and the working angle of this tractor sprayer could be adjusted.
•The capacity of mounted boom sprayer could be adjusted to meet different need from the user.

Model	3WPZ-1200G self-propelled spray boom sprayer	Pump Type	Plunger pump
Engine Model	4L68 (Changchai) turbocharged diesel engine	Pump Model	OS-5200
Power / Speed	53 hp 2400r / min	Pump Pressure	0-45kgf/cm²
Displacement Level	China III	Pump Flow	220-240L / Min
Gear	Forward gear 4,reverse gear 1	Pump Speed	600-800r / min
Drive Mode	Four-wheel drive	Tank Capacity	1500L
Steering Mode	Hydraulic steering	Spray Height	0.5-3.0 m
Mixing Method	Circulating water mixing	Nozzle Model	No.3
Folding Method	Hydraulic folding	Spray Angle	110°
Spray Width	16 m	Nozzle Flow	1.2L / min
Ground clearance	1.9 m	System Work Pressure	0.3-0.5Mpa
Wheel Track	2-2.6m(adjustable)	3 Filtration System	Tank inlet, pump inlet, nozzle
Operating Efficiency	21-30 acres / hour	Battery	12v / 120AH
Walking Speed	≤25Km / h	Front Tire Model	Tractor tires 9.5-24
Overall Dimension	5800 mm x 2900 mm x 3700 mm	Rear Tire Model	Tractor tires 9.5-24
Weight	3811Kg	Water Tank	15L

Q:Are you a factory or trading company?
A:We are a factory.
Q: How does your factory do regarding quality control?
A: Quality is priority. we always say great importance to quality controlling from the very beginning to the very end.
Q: Do you have a product accessory?
A: Yes, we have the accessories of the product.
Q:Can you customize the product?
A:We can customize the product.
Q: What's your payment terms?
A: Payment terms is T/T or L/C,We accept all reasonable payment.
Q: How about delivery time of your machine?
A: The delivery time is in 60 working days. It depending your quantity.

---
