Sanitary Magnetic Filter

Product Description

Sanitary magnetic filter
Sanitary magnetic filter are designed to extract the ferrous material from the liquid, semi-liquid and air conveying powder in order to purify the material in the production process. Strong magnetic tubes inside the housing filtrates the flow and picks out the unwanted ferrous metal. The unit is simply mounted to the existing pipeline via flanged or threaded ends. Easy access is also possible using the quick release clamp.
Construction:

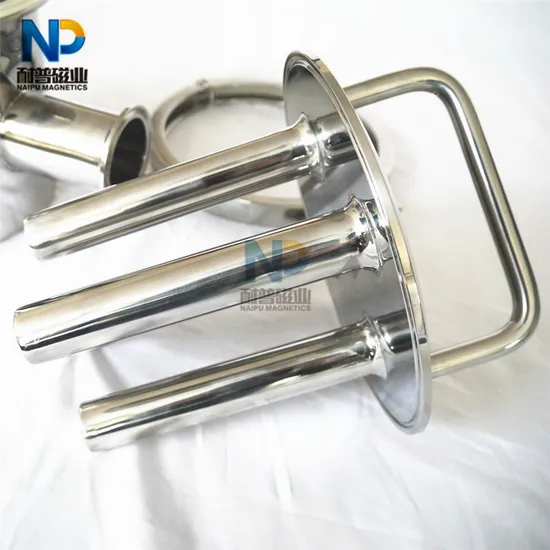

Magnetic Liquid Traps consist of a group of Magnetic grates and a housing outside. An inlet and outlet makes it possible to connect with existing processing line by various connection types.
Features:
1. Finishing: Fine polishing and well welding to meet food grade.
2. Material of shell: SS304, SS316 and SS316L seamless steel tube
3. Working Temperature: Standard working temperature is under 80 Celsius degree, but if high temperature is required, we can offer up to 350Celsius degree to meet your special applications
4. Compress resistance: 6 kilograms (0.6Mpa) with quick release clamp while 10 kilograms (1.0Mpa) with flange.
5. As rare earth magnets are extremely powerful and tramp metal is very difficult to remove by hand. We are ready to offer you an easy-clean design.
6. To meet the demand of preserving heat, we offer you a special design adding insulation layer.
7. Customer designs, specifications can be fulfilled.
Application area:
This unit is suitable for the products that is Liquid, Semi-liquid and air-conveying powder
How to do cleaning?
Magnetic Liquid Traps also should be cleaned periodically for the most efficient performance. Release the cover and hand out the magnetic rods group. Then wipe the tramp metal from SS shell one by one. Use extreme caution and wear gloves during the process.
How to select our products?
Please advise us the above necessary information to make enquiry. If you aren't in a position to offer these information, please feel free to contact our engineer and acquaint us with the application environment and material condition.
FAQ:
1.What about the lead time?
(1) Sample: 2-3 days.
(2) Batch quantity:5-7 days.
3.What's the MOQ?
Common regular Size: ≥1 Piece.
3. Terms of Paymemt:
(1). T/T in advance
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt
4. Package & Shipment :
Package: Magnetic Isolation in wooden carton
(1). By Express(DHL, FedEx, TNT, UPS): Door to door, Short Delivery time, 3-5 days.
(2). By Air: Short Delivery Time, 3-7 days.
(3). By Sea: Cheap Shipping Cost, 7-35 days.

---
