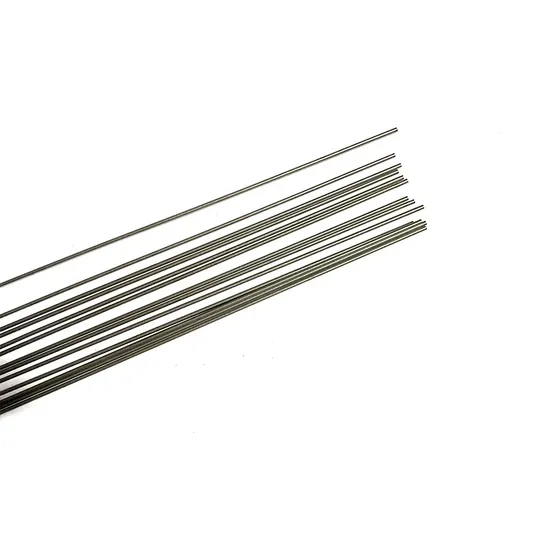

Good Wear Resistance Solid Tungsten Carbide Polished Bar Rod

Product Description

Product Description
Carbide rods are cylindrical, solid rods made primarily of tungsten carbide, a compound known for its hardness, wear resistance, and high temperature durability. These rods are widely used in the manufacturing of cutting tools, end mills, drills, and other machining tools.

		(Unit):mm
Diameter	Tolerance	Length	Tolerance
D≤5	0-0.3	330<L	0-6.0
5<D≤20	0-0.4
20<D	0.1-0.6

Feature
Characteristics:
High Hardness: Maintains hardness even at high temperatures, making it ideal for cutting and machining hard materials.
Wear Resistance: Excellent durability in abrasive environments.
Thermal Stability: Performs well under high thermal conditions without deformation.
Corrosion Resistance: Resistant to chemical corrosion in challenging environments.
Grade List

Grade	Density g/cm3	T.R.S MPα	Hardness HRA	Properties & Applications
YL50	13.86	2060	1095	It is suitable for manufacturing punching dies and tools.
YU06	14.7	3000	2050	It is suitable for manufacturing milling cutters for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc.
YU08	14.56	4000	1900	It is suitable for manufacturing micro-drills with diameter less than 0.8mm for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc.
YU09	14.36	3900	1950	It is suitable for manufacturing micro-drills for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc.
YU12	14.05	4000	1750	It is suitable for manufacturing solid cemented carbide tools for machining steels that are corrosion and heat resistant steel, stainless steel, titanium alloy, and non-ferrous metals.
YF06	14.86	3800	1800	It is suitable for manufacturing drills with big diameters of 3.2-6.3mm for machining PCB, drills of 0.8-3.2mm and mills, and it is also suitable for making solid carbide tools for machining aluminum alloy, plastic, PTFE and compound materials, such as carbon fiber, etc.
YF08	14.55	3900	1800	It is suitable for manufacturing micro-drills for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy, etc.
YG6X	14.8	1800	1550	It is suitable for manufacturing solid carbide tools and wear parts.
YG8	14.6	2400	1400	It is suitable for manufacturing carbide core rods and wear parts.
YL10.2	14.5	4000	1550	It is suitable for manufacturing various kinds of solid cemented carbide tools for machining heat-resistant alloys and Ti alloy etc. It is also suitable for manufacturing micro-drills for machining PCB.

Product Parameters
Product Size

Length	310mm or 330mm	(Unit):mm	Remark
Diameter	Tolerance	Diameter	Tolerance
1.2	+0.20	16.7	+0.50
1.7		17.2
2.2		17.7
2.7		18.2	+0.60
3.2		18.7
3.7		19.2
4.2		19.7
4.7		20.2
5.2		20.7
5.7	+0.25	21.2
6.2		21.7
6.7		22.2
7.2		22.7
7.7		23.2
8.2	+0.30	23.7
8.7		24.2	+0.70
9.2		25.2
9.7		25.7
10.2		26.2
10.7		27.2
11.2	+0.35	28.2
11.7		29.2
12.2		30.2
12.7	+0.45	31.2
13.2		32.2
13.7		33.2	0.80
14.2	+0.50	34.2
14.7		35.5
15.2		36.2
15.7		382
16.2		40.2

The Sizes for the Carbide Rods:

Solid Carbide Rods (Full length)
	Nominal Dia	D(mm)	D(mm)	Length	Remarks
	D (mm)	Un-ground	h6	mm
	0.5	0.7	0.5	310-330
	0.8	1	0.8	310-330
	1	1.2	1	310-330
	1.5	1.7	1.5	310-330
1/16"	1.5875	1.8	1.5875	12" -13"	inchin size
	2	2.2	2	310-330
	2.35	2.55	2.35	310-330
3/32"	2.38	2.6	2.38	12" -13"	inchin size
	2.5	2.7	2.5	310-330
	3	3.2	3	310-330
1/8"	3.175	3.4	3.175	12" -13"	inchin size
	3.5	3.7	3.5	310-330
5/32	3.968	4.2	3.968	12" -13"	inchin size
	4	4.2	4	310-330
	4.5		4.5	310-330
3/16"	4.7625	5.0	4.762	12" -13"	inchin size
	5	5.2	5	310-330
	5.5	5.7	5.5	310-330
	6	6.2	6	310-330
1/4"	6.35	6.6	6.35	12" -13"	inchin size
	6.5	6.7	6.5	310-330
	7	7.2	7	310-330
	7.5	7.7	7.5	310-330
5/16"	7.937	8.2	7.937	12" -13"	inchin size
	8	8.2	8	310-330
	8.5	8.7	8.5	310-330
	9	9.2	9	310-330
	9.5	9.7	9.5	310-330
3/8"	9.525	9.7	9.525	12" -13"	inchin size
	10	10.2	10	310-330
	10.5	10.7	10.5	310-330
	11	11.2	11	310-330
7/16"	11.11	11.3	11.11	12" -13"	inchin size
	11.5	11.7	11.5	310-330
	12	12.2	12	310-330
	12.5	12.7	12.5	310-330
1/2"	12.7	12.9	12.7	12" -13"	inchin size
	13	13.2	13	310-330
	13.5	13.7	13.5	310-330
	14	14.2	14	310-330
9/16"	14.288	14.5	14.288	12" -13"	inchin size
	14.5	14.7	14.5	310-330
	15	15.2	15	310-330
	15.5	15.7	15.5	310-330
5/8"	15.875	16.1	15.875	12" -13"	inchin size
	16	16.2	16	310-330
	16.5	16.7	16.5	310-330
	17	17.2	17	310-330
	17.5	17.7	17.5	310-330
	18	18.2	18	310-330
	18.5	18.7	18.5	310-330
	19	19.2	19	310-330
3/4"	19.05	19.3	19.05	12" -13"	inchin size
	19.5	19.7	19.5	310-330
	20	20.2	20	310-330
	20.5	20.7	20.5	310-330
	21	21.2	21	310-330
	21.5	21.7	21.5	310-330
	22	22.2	22	310-330
	22.5	22.7	22.5	310-330
	23	23.2	23	310-330
	23.5	23.7	23.5	310-330
	24	24.2	24	310-330
	24.5	24.7	24.5	310-330
	25	25.2	25	310-330
1"	25.4	25.7	25.4	12" -13"	inchin size
	26	26.3	26	310-330
	27	27.2	27	310-330
	28	28.2	28	310-331
	29	29.2	29	310-333
	30	30.2	30	310-334
	31	31.2	31	310-335
1-1/4"	31.75	32.0	31.75	12" -13"	inchin size
	32	32.2	32	310-336
	33	33.2	33	310-337
	34	34.2	34	310-338
	35	35.2	35	310-339
	36	36.2	36	310-340
	37	37.2	37	310-341
	38	38.2	38	310-342
1-1/2"	38.1	38.4	38.1	12" -13"	inchin size
	39	39.2	39	310-343
	40	40.2	40	310-344
	42	42.2	42	310-344

**Carbide Rods with Special Diameter and length can be made as request

TOLERANCES For Diameter and Length (h6)			TOLERANCES for Roundness and Straightness (h6 )
Size, mm	D, h6	L	Size, mm	Straightness (Run-out)	Roundness
≤3	+0,-0.006	+5/+1	≤4	0.15 max	0.004 max
5 to 6	+0, -.008		5 to 10	0.08 max
8 to 10	+0, -.009		10 to 13	0.06 max
12 to 18	+0, -.011		>13	0.05 max
20 to 24	+0, -.013

Types of Carbide Rods:
Solid Carbide Rods: Fully made of tungsten carbide, used for high-precision tools.
Carbide Rods with Coolant Holes: Include one or more channels for coolant flow, ideal for applications needing heat dissipation during machining.
Custom Shapes and Sizes: Tailored to specific industrial needs, such as non-standard diameters or lengths.
Production Process
Application
Applications:
Cutting Tools: Used in drills, milling cutters, and other machining applications.
Mining and Construction: For tools like drill bits and cutters that require durability and resistance to harsh environments.
Precision Machining: High-performance tools in aerospace, automotive, and die-making industries.
Used in welding/ making the drill bits/ endmills / reamers .automobile special cutters, printed circuit board special cutters, engine special cutters, Horologe, processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can bu used for making of cemented carbide stamping head, Core bar and perforation tools.
Package & Delivery
Company Profile
Hunan Jetvision Industrial Co., Ltd.,specialized in production carbide products more than 20 years. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc .
We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips and insert, carbide button, Carbide tiles, HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth, Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.
We are able to manufacturing all kinds of tungsten carbide components for different applicants, customized manufacturing carbide sealing rings,balls and seats,valve trims,bushing,sleeves wear parts with high quality. Our Tungsten carbide products have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

Quality Control
We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.

Our Advantages
1. Professional manufacture for tungsten carbide with more than 15 years' experience. All products have passed the ISO9001 certifications.2. We have our own factory to produce the molds and products, so the delivery is fast. Also we have the professional sales teams to satisfy you well.3. All products go through in-process and final inspection. Strictly and complete quality control system.4. Made from 100% virgin material, stable and reliable quality.5. We can accept order of all kinds of special designed products of tungsten carbide.6. Various payment terms and delivery methods supported.7. Sample and free online technical service is available.

FAQ:
Q1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.
Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.
Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.
Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products
Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.
Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on

---
