5 Axis CNC Milling Machine with 24 Tool Magazine for Efficiency

Product Description

Product Description
Product Parameters

Item	Unit	U650
Travels
X-axis	mm	800
Y-axis	mm	520
Z-axis	mm	500
B rotation range of tilt axis	°	±120
Rotation range of axis C	°	360
B/C axis positioning (VDI3441)	"	10
B/C axis repeatability (VDI3441)	"	4
Distance from spindle center to column guide surface	mm	187
Distance from spindle end to worktable	mm	150-650
Worktable
Worktable area	mm	Φ650
Reference aperture	mm	Φ50H8
T-slots width	mm	14H8
Maximum machining workpiece volume	mm	Φ650*(100+R325)L
Max. weight on table (45-90°/horizontal)	Kg	300
Spindle
Spindle speed	rpm
Taper of spindle nose		BT40
ATC Auto Tool Magazine
Tool taper		BT40
Magazine type		Mechanical cutter arm type
Tools Capacity	Pcs	24T
Maximum tool diameter (no adjacent tool)	mm	75/150
Maximum tool length	mm	300
Maximum tool weight	kg	7
VDI3441 (JISB6338)
Positioning	mm	P0.008(±0.003/300)
Repeatability	mm	Ps0.006(±0.002)
Basic parameters
Spindle motor	kw	7.5/11
X/Y/Z axis motor	kw	4.0/4.0/7.0
B/C axis motor	kw	12.6/6.3
X/Y/Z axis rapid speed	m/min	24/24/24
B/C axis rapid speed	rpm	60/100
Feed rate	mm/min	1-12000
Controller	FANUC	0i-MF
Power requersted	KVA	45
Air consumption	Kg/cm²	6
Machine weight	Kg	10000
Water tank capacity	L	350L
Dimension(L/W/h)	mm	3700*3510*3260

Standard proximity and function			Optional proximity and function
1.FANUC Oi-MF Plus control system		13.Transformer	1. Optical ruler
(5 Axis 4+1 with TCP)		14.Water gun	2. Tool length measurement tm26D
2.BT40-150 inclined spindle on 15000rpm		15.Air gun	3.Workpiece measurement OMP60
3.Oil coolant system		16.Rigid tapping	4.Ball gauge for calibration
4. Spindle blushing		17.Manual loosening device	5. Workbench center correction software
5.Cutting coolant system			6. HSK-A63 spindle 15000rpm/20000rpm
6.Tank and waterbox			7.40 pcs magazine
7.Automatic lubrication system			8.Blowing cooling
8. Telescopic cover of triaxial rail			9. Coolant temperature controller
9.Electric box air conditioner			10.Oil mist collector interface (diameter 200mm)
10.Handwheel			11. Air dryer
11.Work light			12. Bonded anchor bolt
12.Warm light			13. Metal filter housing of air dryer

OUT LOOK SIZE

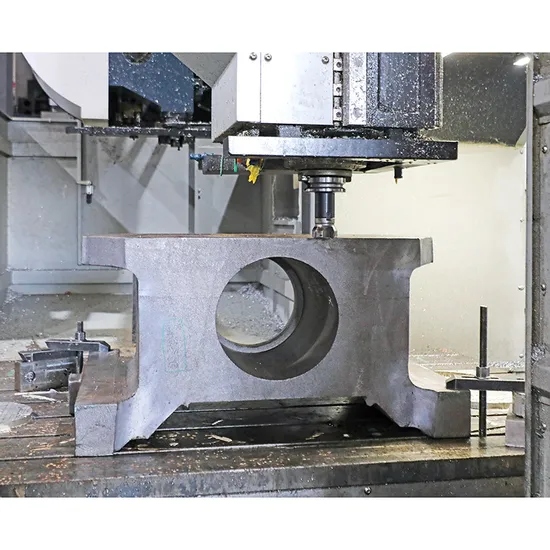

Detailed Photos
Company Profile
Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: Our warranty spans a generous 12 months from the BL date, ensuring peace of mind and reliability.
Q2: Can we visit your factory before order?
A2: Absolutely! We warmly welcome all new and returning friends to explore our factory. To make your visit seamless, we're happy to assist with pickups from the station or airport, and we're honored to help arrange your tickets and accommodations.
Q3: Do you have a stock?
A3: Typically, we manufacture machines to order, reflecting our commitment to quality and customization. However, during trade fairs, a limited number of samples may be available.
Q4: What's the MOQ?
A4: Our minimum order quantity is just one set, making it easy to start with our cutting-edge solutions.
Q5: How about your quality?
A5: Our quality is outstanding, accredited by ISO9001:2008, ISO14001, and OHSAS18001 certifications. Our products meet European and American safety standards, including CE, GS, EMS & UL, ensuring top-notch safety and reliability. With 90% of our products reaching over 60 countries, our high reputation speaks volumes about our excellence and commitment to quality.
Q6: Do you have professional engineers?
A6: Indeed, we boast a team of professional engineers and designers who are ready to provide exceptional OEM services to tailor solutions to your needs.
Q7: Can you provide customized machines?
A7: Certainly! We specialize in crafting machines tailored to your unique specifications, offering bespoke design and manufacturing services to meet your precise requirements.

---
