| Shenzhen Keyuxin Automatic Machine Co., Ltd |
| TEL：18665307510 |
| email: 570397983@qq.com |

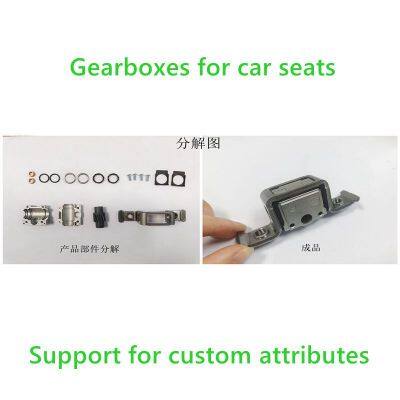

| Gearboxes for car seats |

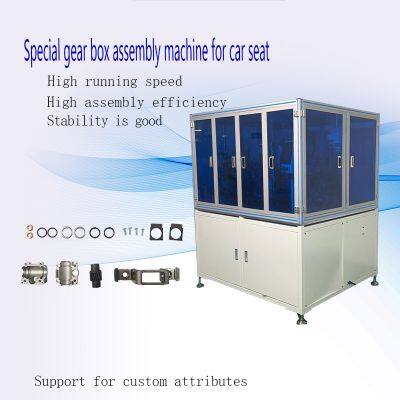

| Location process | Special gear box equipment for car seat |
| Rated input voltage | AC220V /50HZ； |
| Air pressure | The working pressure is 0.5~0.7MP; |
| Air source interface dimensions | φ12 quick connector; |
| Equipment inlet and outlet dimensions | The length of the rotor pipeline is 2000MM from point 0 on the side of the chassis, and the height of the rotor pipeline is 670MM from point 0 on the belt surface to the bottom of the chassis without a cup |
| The feeding line of the housing is 200MM long from point 0 on the side of the chassis, and 780MM high from point 0 on the belt surface to the bottom of the chassis without a cup |
| The feed height of the rear cover is 700MM from 0 point at the bottom of the chassis |
| Overall size and color | 1750 x 1200 x 1800 (MM) The actual device size varies |
| The overall structure is compact, paint parts color Wanbao to green; |
| The frame part adopts aluminum profile structure specification (40 x 40) mm, transparent acrylic; |
| The production efficiency | The capacity of the equipment is 1000-1200 per hour1200/H |
| interface | Man-machine operation interface, with the necessary protection function; |
| Unparallel ease of use | After loading the material, 1 manual guard, lack of material alarm function; |
| security | Must ensure safe operation and good grounding. |
| Ease of maintenance | UC-MAUC； |
| Basic Device Configuration | Bearing manufacturer Jingyi bearing |
| Optical fiber, sensor manufacturers Omron |
| Controller (PLC) manufacturer Xinjie |
| Operating panel (touch screen) manufacturer Xinjie |
| Motor manufacturer Oneng |
| Pneumatic components manufacturer AirTAC; |
| Buffer manufacturer AirTAC |
| Drawing list of wearing parts | Come with it; |
| Support for custom attributes. |
