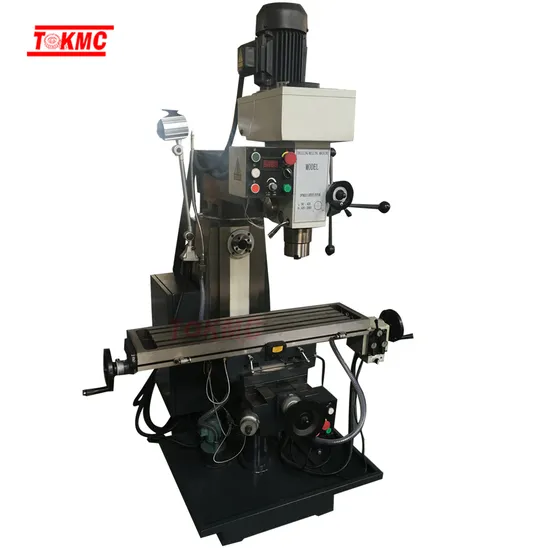

Universal Milling Machine Milling Drilling Machine Feature :
Headstock swivels ±45°.
Spindle sleeve feed,automatic with 3speeds right-/left-handed rotation for threading.
Drill depth stop with display of measurement.
-clamping kit, rotayr table, universal dividing head, drilling chuck, protection guard
| Item | TU60S |
| Spindle taper | R8/MT4/ISO30/ISO40 |
| Distance from vertical spindle nose to table | 70~420mm |
| Distance from horizontal spindle centerline to table | 0-280mm |
| Distance from vertical spindle centerline to column | 220-700mm |
| Distance from horizontal spindle centerline to ram bottom | 170mm |
| Spindle speed range | (H) 8steps, 60-1350r.p.m (V) L:90-425r.p.m./H:425-2100r.p.m. |
| Swivel angle of milling head | ±45° |
| Table size (L×W) | 1000x240mm |
| Max.rotations angle of tadle | ±45° |
| Table travel (X/Y/Z) | 500x200x350mm |
| Table longitudinal & cross feed | 4 steps, 7-42mm/min |
| Table vertical feed (Z) | |
| X,Y-axis rapid feed speed | 800mm/min |
| Z-axis rapid feed speed | |
| Feed motor power | 370w |
| Max.loading of worktable | 200kgs |
| Table T-slots (No./Width/Pitch) | 3/14mm/60mm |
| Z-axis guide way type | Dovetail |
| Y-axis guide way type | Dovetail |
| X-axis guide way type | Dovetail |
| Main motor power | (V)2.2KW (H)1.5KW |
| Overall dimensions (L×W×H) | 1290X1220X2100mm |
| Packing size (one/two sets) | 114x134x222cm |
| N.W (one set) | 850kgs |
