Pneumatic Tire Press Loading Machine Tyre Tripling Device

Product Description

Product Description Car Tyre Press doubling tripling machine:
It is mainly use for waste tyres doubling or tripling together so that to make easy and more quantity transportation.
There are hydraulic and pneumatic two types.


Product Parameters Hydraulic and Pneumatic tyre tripling machine:

Model	H4800	P3800
Drive type	Hydraulic	Pneumatic
Power supply required	220V/380V/415V/ 3-phase; For motor, Solenoid valve, travel switch,etc.	100V--230V, single phase; For Solenoid valve, travel switch onl
Motor power	4kw/5.5kw/7.5kw based on the power supply	No motor power unit
Pressure source	Hydraulic pump	Air compressor
Working pressure	10Mpa	0.8MPa
Cylinder quantity	Hydraulic cylinders- 9pcs	Air cylinders-9pcs
Max tyre diameter	105cm	95cm
Max tyre width	30cm	30cm
Tyre tripling quantity	3-5 pcs	2-3pcs
Main structure	Host frame, hydraulic system, motor power station	Host farme, air system, control system
Operation method	Handle rod to control the hydraulic oil	Control panel buttons to control the air direction
Machine dimension about	2400*850*3570mm	2210*800*3300mm
Packing size about	2500*920*2500mm	2400*850*2500mm
Weight:	850kg	730kg

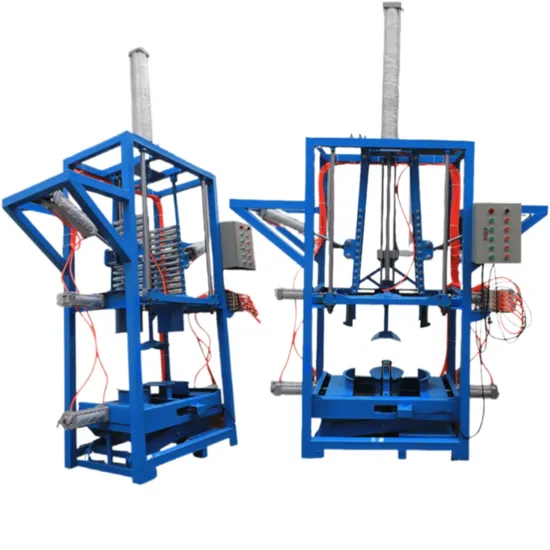

Detailed Photos
Main Features 1, Pneumatic doubling tyre tripling machine with air supply from compressor, it can press 3-5 tyres together;
2, Be easily operated by one man, and the work efficiency is high;
3, Low failure rate, long time working life.
Packaging & Shipping FAQ 1, What types of this manchine can you supply?--- Hydraulic and pneumatic two types.2,What is the lead time normally?-- About 25 working days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, plywood case packing and do LCL shipment.5, How about your warranty and after-sale service?---The warranty is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.

---
