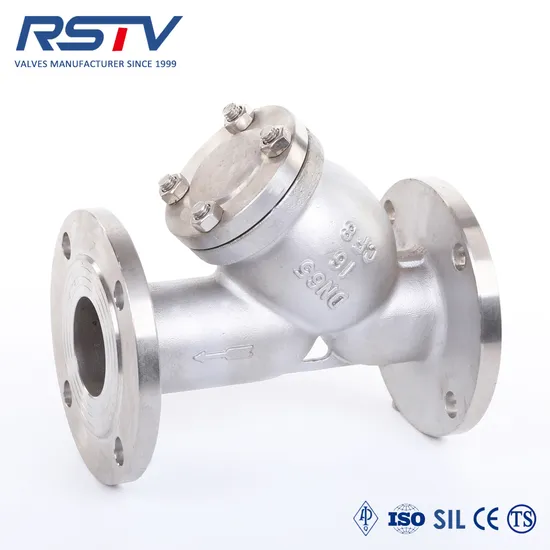

Wcb Carbon Steel Flanged Y Type Filter Strainer Gl41W-150lb/600lb/900lb

Product Description

Product Description WCB Carbon Steel Flanged Y Type Filter Strainer GL41W-150LB/600LB/900LB Design and Operation: The Y-Strainers consists of a housing with opposite arranged inand outlet flanges at the same level. Between these connections is a basket strainer made of a perforated plate, optionally covered with a cloth consisting of various materials and mesh widths. The medium to be filtered will enter the filter from the inside to the outside. Hence, the contaminations will remain within the strainer insert. The Y-Strainer could be depressurizing through the venting or draining devices. After removing of the flap the complete basket strainer could be easily removed out of the filter housing. Now the strainer can be cleaned by blowing out or blasting using compressed air, steam, or water. If necessary, the strainer should be soaked and cleaned using a suitable agent. Possibly, an optimal cleaning will be obtained using ultrasonics. The housing could be manufactured by forged steel, cast iron or a weldment (pipes and flanges). Y-Strainer can be installed both in the horizontal and vertical positions without any effect on performance providing the screen is installed in the downward position to assist draining and cleaning operations. Specifications:

Product Name	Flange ends Cast Steel Y type Strainer 1/2~48 inches
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2''~48'' ( DN15~DN1200)
3. Thread standard	ISO9001 & CE, TS
4. Type	Y type
5. Working Pressure	AISI 150LB~1500LB/ PN16~PN250
6. Connection Ends	RF, FF. RTJ
7. Screen	20 mesh to 160 mesh
8. Working Temp.	-29~425ºC, or according to customer requirements for different industry.
9. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
10. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size

Advantage and Utility:
Reasonable strainer Standard types available from stock Permanent filtration of the medium Suitable for mounting in horizontal and vertical pipelines No disassemble of the filter housing for cleaning is necessary Simple handling / basket cleansing Low-maintenance Reusable elements Contamination level indicator (optional)
Technical Data:

Medium : liquids, steams, gases or mixtures
Engineering Specification Flange nominal width: DN 15 to 1200 (1/2" to 48") Operating Pressure: PN 16 to PN 250* (ANSI 150 to ANSI 1500 lbs)* Filter fineness (Mesh sizes): 400 μm* (Standard) or s per to customer's requirement Connection Flanges acc. to ANSI / DIN Material Housing: 1.0169 (A216 WCB) 1.4408 (A315 CF8M) Filter element: 1.4401 (316) Surface treatment: one coat of red oxide* (carbon steel) Fitting position: Horizontal or vertical Direction of flow: lateral or from top to down
Material List:

No.	Part Name	Material
1	Body	ASTM A351 CF8M
2	Strainer Screen	SS316
3	Bolt	SS304
4	Gasket	PTFE
5	Bonnet	ASTM A351 CF8M
6	Nut	SS304
7	Bolt	SS304

Technical Specifications :

1. Basic design and manufacture according to ANSI B16.34.
2. Flange connection per ASME B16.5.
3. Inspection and tested according to API 598.

FAQ
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.
Q2: Is the requirement for MOQ?
A2: For some small size, like 1/4''-1''(DN6-DN25), it request the MOQ is 50pcs for each size. Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 18 months after leaving our factory. We can repair or change because of the quality problems.
Q4: Payment
A4: Mainly T/T, Western Union & PayPal are applicable for us. Payment Term: 30% prepayment, 70% balance paid before shipping or against copy of BL.
Q5: Can you manufacture different standards valves according to customer requirements?
A5: Yes. We can manufacture API,DIN,GOST,JIS standards for different pressure & temperature & size according to different needs.
If you want to know more about our products, please contact freely. We will patiently answer your all questions.

---
