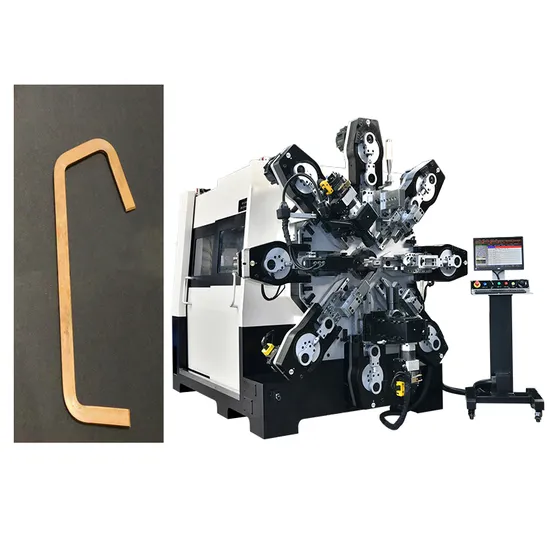

Multi-Axis CNC Wire Bending Machine for Copper Alloy Bus Bar and Aluminum Bar

Product Description

Product Parameters

MODEL		CMM-40-6E
Wire Diameter		50.0 * 8.0mm (soft material)
Max.Wire Feed Length		Infinite length
Number Of Axes		13 axes (standard with servo scissors)
Power		62KW
Voltage		380V
Software		Pentium Industrial Computer/Intel
Voltage Regulator Power		50KAV
Robotic Control System		Standard configuration
Depth		3600mm
Width		2200mm
Height		2350mm
Machine Weight		9400KG	3000KG
The above configuration parameters are subject to change without prior notice, please refer to the actual situation.

---------------------------------------------------------------------------------------------------
Contact us for more information
Product Description
Detailed Photos
Installation Instructions

Packaging & Shipping
Company Profile
Since the establishment of the VINSTON brand in 2001, our machines have revolutionized the manufacturing industry across more than 20 countries.
We are dedicated to providing top-quality machinery and exceptional customer service. Our commitment to resolving customer application challenges drives our R&D team to innovate the next generation of machinery, supporting a wider range of designs and builds. With strategically located sales and support centers on four continents, VINSTON delivers superior wire manufacturing solutions worldwide.
VINSTON specializes in CNC Multi-Axis spring and bending machinery for all types of bus bars, serving the electrical vehicle and power distribution industries. We incorporate advanced servo control technology into our spring and bus bar production processes.
VINSTON is a pioneer in China, having modified the camless machinery architecture to enhance bus bar manufacturing. Our updated product line features multiple domestic and international patents.
The VINSTON product line is renowned for its high accuracy, exceptional efficiency, and low energy consumption.
.



Certifications
---------------------------------------------------------------------------------------------------
Contact us for more information
After Sales Service
We offer complimentary remote technical support via email or phone. Upon request, we can dispatch technical personnel to the customer's factory for on-site support, with the customer covering the associated expenses outside China.
Customers are also welcome to send their technical personnel to Vinston's factory for complimentary training.
The entire machine is under a one-year warranty. During this period, parts damaged through no fault of the user can be replaced at no cost.
After the warranty expires, any replacement parts will need to be purchased, with all associated costs borne by the customer.
FAQ
Q1: What is the MOQ?A1: One set.Q2: What is the payment term?A2: 30% deposit, with the remaining 70% due before shipment.Q3: What is the delivery time?A3: 30-50 working days after receiving the deposit. Setup and sample adjustment times are not included.

---
