1cavity 5gallon Automatic Blow/Blowing Molding Machine for 15L Pet Bottle

Product Description

Specification of D-R605 5gallon Automatic blow moulding machine
https://chinadoria.en.made-in-china.com/product-list-1.html
1. One cavity high speed PET blow moulding machine with linear style-Max capacity: 20L
D-R605 is a two step rotation style PET Automatic blow moulding machine with auto-loader. One cavity D-R605 machine is suit to blow any PET, PC etc. bottle.
2. Details of D-R605machine:
2.1 D-R605 machine is with automatic human-computer interface, easy operation, stable operation, little fault, fast speed blowing.

2.2 D-R605 machine is adopted all parts by precision machining.
2.3 D-R605 machine is adapted to continuous auto-loader with high speed and efficient.
2.4 The oven of D-R605 machine is with high speed and balance heating.
2.5 The chain of oven is imported by Japan with strong durability.
2.6 The bottleneck of D-R605 machine is with blowing cooling which could provide better protection for screw of PET preforms.
2.7 D-R605 machine is with powerful and stable operation pneumatic type clamping mechanism. The machine is also adapted to pneumatic system to stretch preforms which is with high speed and exact route stretching.

2.8 The blow (row) system is German with high speed blowing (rowing) and long life.
2.9 D-R605 machine could convey the bottles to filling line directly with novel design convey.
3. Main process of machine is
Auto feeder resin infrared heating auto blow bottle bottles go down auto;
4. Main items of machine

Item	Product name	Origin Place of Origin	Brand
electric/control element	Air switch	France	Schneider
	Intermediate relay	France	Schneider
	Contactor	France	Schneider
	optoelectronic switch	Japan	OMRON
	touch screen	Japan	Mitsubishi
	PLC	Japan	Mitsubishi
	switch power	Taiwan	MEANWELL
valves/contacts	high pressure blowing valve	USA	Parker
	action valve	Japan	Yuken
	pneumatic quick contact	German
	action valve	Japan	Yuken
	opening and closing mould cylinder	German
	stretch cylinder	German
	pressing preform cylinder	German
	auto-loader lifting cylinder	Japan	SMC
	auto-loader rotation cylinder	German
	mechanical arm air-operated	Taiwan	Jinqi
	sealing cylinder	China	Ribo

-
5. Specification of D-R605 machine:

Type	Item	D-R605
	die cavity	1 cavity
	output	500-600pcs/hr
	Max. capacity	20.0L
	Max. outer diameter of bottleneck	90mm
	Max. diameter of bottle body	300mm
	Max. height of bottle body	600mm
electricity specification	lamp	30pcs
	Max. heating power	85kw
	total electricity for installing machine	85kw
	practical power consumption	15kw
pressure specification	work pressure	7-8kg/c
	gas consumption of low pressure	1500Ltr/min
	blowing pressure	25-35kg/c
	gas consumption of high pressure	2000-2500 Ltr/min
chilled water specification	work pressure	5-6 kg/c
	temperature range	10ºC
	consumption	6000kcal/hr
	chilled water rate	50Ltr/min
machine specification	machine measure	4.0*1.9*2.0(m)
	machine weight	3.3ton

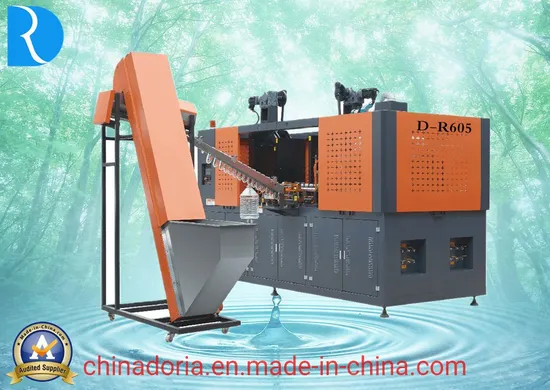

6. Pictures of D-R605
6. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
7. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China

---
