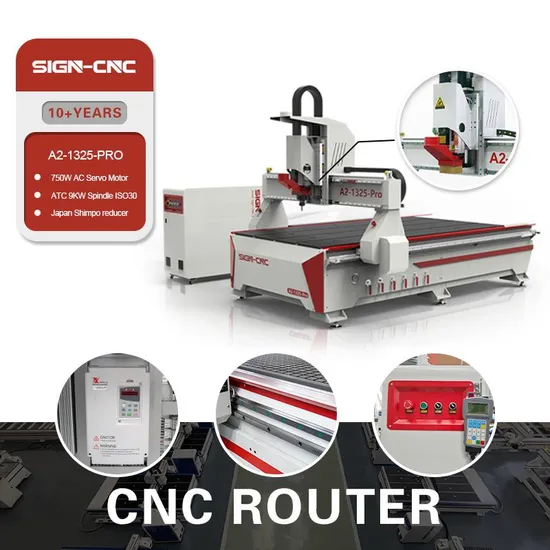

Factory Wholesale Sign A2 PRO 1325/2030 Wood Router Wood Cutting Engraving Craving Machine CNC Router for Furniture Factory

Product Description

Factory Wholesale SIGN A2 PRO 1325/2030 Wood Router Wood Cutting Engraving Craving Machine CNC Router For Furniture Factory
Product Description
Machine features:
A2 Pro semi-automatic tool changing machine with ATC 9KW high-power spindle, supports quick and one click tool changing, greatly improving work efficiency. With AC servo motor and Japanese Shimpo reducer to ensure machine stable operation.
CNC router can be used to produce items such as door carvings, interior and exterior decorations, wood panels, sign boards, wooden frames, moldings, musical instruments, furniture.
Product Parameters

Model	A2-1325 / 1530 / 2030 /2040 -Pro
X, Y Working Size	1300*2500mm / 1500*3000mm / 2000*3000mm /2000*4000mm
Z-axis Height	300mm
Table Surface	Aluminum profile T-slot table with PVC protection
X, Y Structure	Helical rack and High precision 25mm square guide rail
Z Structure	High precision 25mm square guide rail and ball screw
Max. Power Consumption	(Without spindle) 2.0KW
Max. Rapid Travel Rate	35m/min
Max. Working Speed	20m/min
Spindle Power	HQD 9KW ATC air-cooled ER32 spindle
Spindle Speed	0-24000RPM
Inverter	Folinn high frequency 11KW Inverter
Drive Motors	JMK 750W pure servo motors
Reducer	Japanese Shimpo planetary reducer
Worktable	T-slot
Working Voltage	AC380V/50/60Hz
Command Language	G code
Control System	DSP B11 control system
Tool sensor	Adjust the distance from the tool to the materials
X,Y,Z Repositioning Accuracy	±0.03mm
X,Y Resolution	<0.03mm
Software	Artcam with post processor
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

Detailed Photos
Samples
Packaging & Shipping

Company Profile
To ensure the overall high quality of machine,all accessories are selected from the original first-line brands,our experienced team strictly follows the drawings for assembly, at least 3 comprehensive tests and support third-party inspection.

FAQ

Q: What is the warranty:
A:Two years guarantee of the whole machine,one year for electrical components
- For hardware issue, fail parts (excluding the consumables)shall be replaced/repaired free of charge during the warranty period.
-For software issue, provide the operation manual or video for guiding, our technician is able to teach you online to run the machine or eliminate the fault for free.
Q: How do I choose CNC router model?
A: Just let us know your working demands, suitable models will be recommended. We have MTC CNC router, ATC woodworking center, pneumatic tool changer CNC router, multi-head CNC router, foam machining center, 4-Axis/5-Axis ATC CNC router and various types of woodworking machines.

---
