Product Description
Product Description
Attention
What can we do for you?
1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3 .The tread of mine rail wheels have 600mm or 900mm for your choose.
Product Description

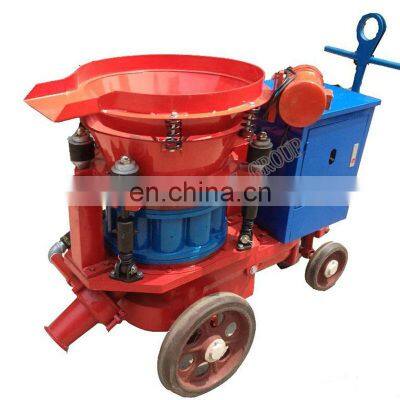

Portable anti-explosion dry concrete spraying shotcrete machine
Anti-explosion shotcrete machine be widely used for:All kinds of metal mines, coal mines, high methanes and other flammable and explosive environments.Shotcrete machine are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc.
Shotcrete machine has many obvious advantages such as simple structure, easy to operate and convenient after sales service and very long serviceable life etc.Standard production, strict and regular assembly line work, strict quality control and inspection. Professional sales and after sale service team, timely and efficiently to solve your any problem.
SPECIFICATION FOR SHOTCRETE MACHINE
|
Model
| PZ-3
| PZ-5
| PZ-6
| PZ-7
| PZ-9
|
Production capacity
| 3m3/h
| 5m3/h
| 6m3/h
| 7m3/h
| 9m3/h
|
The maximum transmission distance
| 200m
| 200m
| 200m
| 200m
| 200m
|
Applicable material proportioning: cement/sand
| 1:3-5
| 1:3-5
| 1:3-5
| 1:3-5
| 1:3-5
|
Applicable materials water-cement ratio
| <0.4
| <0.4
| <0.4
| <0.4
| <0.4
|
The biggest bone size
| 10mm
| 15mm
| 15mm
| 20mm
| 20mm
|
Transporting pipe inner
| 42
| 51
| 51
| 51/64
| 64
|
Rotor block diameter
| 350mm
| 438mm
| 438mm
| 480mm
| 480mm
|
Working pressure
| 0.2-0.6MPa
| 0.2-0.6MPa
| 0.2-0.6MPa
| 0.2-0.6MPa
| 0.2-0.6MPa
|
blast consumption
| 5-6m3/h
| 7-8m3/h
| 7-8m3/h
| 9-10m3/h
| 9-10m3/h
|
motor power
| 4KW
| 5.5KW
| 5.5KW
| 7.5KW
| 7.5KW
|
Level of voltage
| 380V,440V,660V,1140, 50Hz/60Hz
|
The weight
| 400Kg
| 700kg
| 700kg
| 800kg
| 900kg
|
The main advantage of portable anti-explosion dry concrete spraying shotcrete machine:
1) In particular, shotcrete machine's top rate of discharge from the jet (up to 30 m/s),which enables perfect consolidation of the concrete mixture and high strength of the sprayed concrete
2) the long distance transfer,which enables the application of concrete mixture at hard to access places (up to 200 m horizontally and 20 m vertically).
Detailed Images
Our Service
Professional production team, production line, experienced technical experts who have been engaged in this industry for more than 6 years.
We have the professional production line for the main wearing parts of shotcrete machine:
1.Delivery Rubber Hose: More durable than normal kind of rubber pipe, weaved by the quality steel wire, high resist compression ability, high wear resistance.
2.Rubber Sealing Plate: Adopt nature rubber, service life can be up to 400m3.,while the normal one is only 130m3.
3.Rotor Disk: Casting by quality carbide tools, service life is 3-5 times longer than normal kinds,can meet 600-800m3,it's prefect for the rotor type shotcrete machine.
Warm tips: About shotcrete machine wearing parts
Please prepare some original accessories when purchasing the machine.
History deal
Packing & Delivery
Packing for shotcrete machine:
We will send shotcrete machine picture which you have orderd, then packing it with standard export wooden box after you have confirmed the machine is ok .
Different machines' package will be different. We usually supply export wooden box ,carton box package. If it is a big machine and production line machine , it will be loaded in the container directly .
Delivery for shotcrete machine:
1. Delivery by sea :After it was delivered to the seaport . We will tell you the shipping time and arrival time . Finally, we'll send you all original documents by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .
3.Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .
Our Company
Shandong Hengwang Group Co.,Ltd
Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of shotcrete machine . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
FAQ
MOQ,Payment,Loading port,price term,OEM
1.Payment : I:100% T/T
II:30% advaced and the balance paid before delivery
III:credit letter at sight
2.MOQ:1Pcs
3.Port of loading: Qingdao Port or others
4.Price term:FOB Qingdao price
5.OEM:we are pleased to be your OEM factory
Action Now Contact us:
TRUST YOU WILL LIKE OUR DESIGNS & PRICE.
Maria ma
Mobile/Whatsapp/Wechat /Skype: : +8617686192378
Tel:+86-537-2886869
QQ:3002841982
E-mail: hw020@
>>
