| US$4,000.00 | 1 Piece (MOQ) |

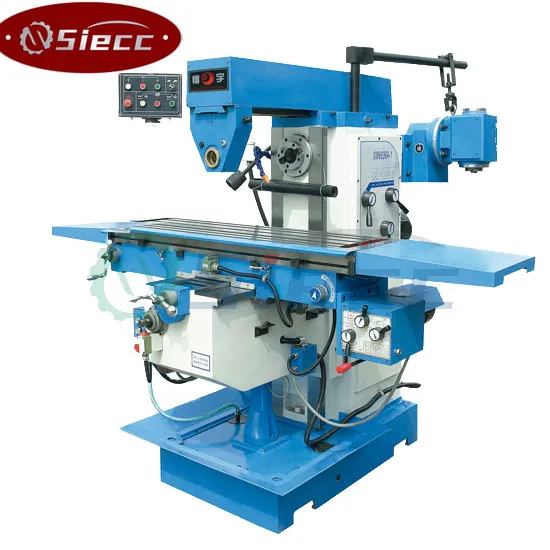

| Specification | Units | X6332B |
| Work table size | mm | 1500×320 |
| Table travel | mm | 840/320/400 |
| X/Y feed | mm/min | 22-555(750) |
| Z feed | mm/min | 560 |
| spindle rotate speed Horizontal | r/min | 60-1800 |
| spindle rotate speed Vertical | r/min | 66-4540 |
| Main motor power | kw | 3.7 |
| Machine size | mm | 1720×1520×2225 |
| Net weight | kg | 1550 |
| Spindle taper | 7:24/ISO40 | |
| Distance between spindle nose and table surface | mm | 155-455 |
| Distance between spindle and colomn | mm | 0-300 |
| Spindle speed range | r/min | 66-4540 |
| Spindle travel | mm | 120 |
| Company | Shining Industrial Enterprise(China) Co., Ltd Nantong Brillante Industrial Enterprise Co., Ltd Edward Pearson Machinery (Shanghai) Co., Ltd NANTONG LIANZHONG MACHINE CO., LTD JIANGSU GOLD-PARTNER ENTERPRISE CO.,LTD |
| Brand | SIECC/EDWARDS PEARSON/HECTMAC |
| Website | braillante.en.made-in-china.com braillante.en.made-in-china.com braillante.en.made-in-china.com braillante.en.made-in-china.com |
| Video | 1. Rolling https://youtu.be/Fi3tFKSoLlY 2. Press brake https://youtu.be/pyIChKoh1eA 3. Grooving https://youtu.be/pFZh_n3vrss 4. Ironworker https://youtu.be/0O9OeCmu9QI 5. Plasma cutting https://youtu.be/71BKxv6tVB8 |
| | |
