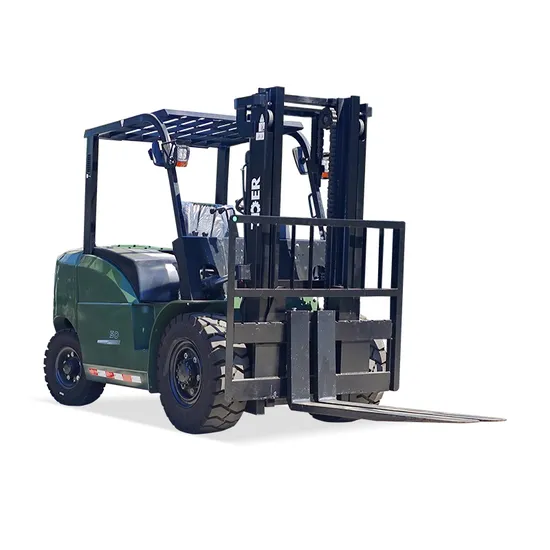

Tder 5 Ton 5t Factory Price Empilhadeira Diesel Forklift Forklifts with Euro5 EPA Engine

Product Description

Product Parameters

Model		FD50
Power Type		Diesel
Rated Capacity	(kg)	5000
Load Centre	(mm)	600
Battery(Voltage/Capacity)	(V/Ah)	24/100
Max. Lift height	(mm)	3000
Free lift height	(mm)	190
Mast Tilt Angle(F/R)	(°)	6/12
Max. Lifting Speed(Full load/No Load)	(mm/s)	500/520
Max.rate of descent(Full load/No Load)	(mm/s)	360/400
Max. Travel Speed(Full load/No Load)	(km/h)	22.5/25
Turning Radius (outside)	(mm)	3320
Max.Gradeability (Full load/No load)	(%)	20/25
Max. hook traction	kN	70
Service weight	(kg)	8330
Length to face of fork(Without fork)	(mm)3480	3480
Overall Width	(mm)	2000
Mast Height	(mm)	2560
Overhead Guard Height	(mm)	2450
Height of backrest	(mm)	1440
Lifting height	(mm)	3000-6000
Ground Clearance(Bottom of mast)	(mm)	200
Wheelbase	(mm)	2250
The front wheel track	(mm)	1470
The rear wheel track	(mm)	1710
Front Overhang	(mm)	590
Rear Overhang	(mm)	640
Front Tire		28x9-15-14PR
Rear Tire		6.50-10-10PR
Fork size (L x W x T )	(mm)	1220×122×45

*Please contact us if you need more detailed parameters. Product Description
1. Equipped with high-quality engine, the emission conforms to the current European and American standards.
2. The core components such as gearbox and drive axle have low failure rate and reliable quality.
3. Adopt cast steering axle, good performance, high reliability and long life.
4. The hoisting system is equipped with a buffer function as standard, the goods fall smoothly, and the operation is safer.
5. Equipped with LED energy-saving lamps, high brightness, low energy consumption and long life.
6. The main structural parts of the vehicle have high safety factor and strong bearing capacity.
7. The gantry channel steel, oil cylinder and chain are optimally arranged, and the front view is wide.
Packaging & Shipping
*All products will be strictly tested before shipping.
*The extra security packing will be carried out for the nude cargo. *Ropes and triangle blocks will be used for fixing forklifts. *We also offer wooden packing way to make the forklifts safer. *Product certificates and nameplates are provided. *A tutorial CD, tool box and extra paint are included as free gifts.
Company Profile
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Certifications
Customer Feedback
Attachments

TDER provides a variety of forklift attachments, such as paper roll clamp, soft bale clamp, rotator, push pull and so on. You can also send us a request to customize your own attachments.

Professional Service
TDER offers customized services. You can freely change the color, engine, LOGO and more. "TDER makes every mechanical gear customizable."
F&Q
1. Why choose us? As a manufacturer, TDER industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services. 2. What is the product range of our factory ? Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements. 3. What payment terms can we accept? Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted. 4. What Certificates do we have? All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed. 5. How about our delivery time? Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order. 6. Can we provide OEM service? Tder industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

---
