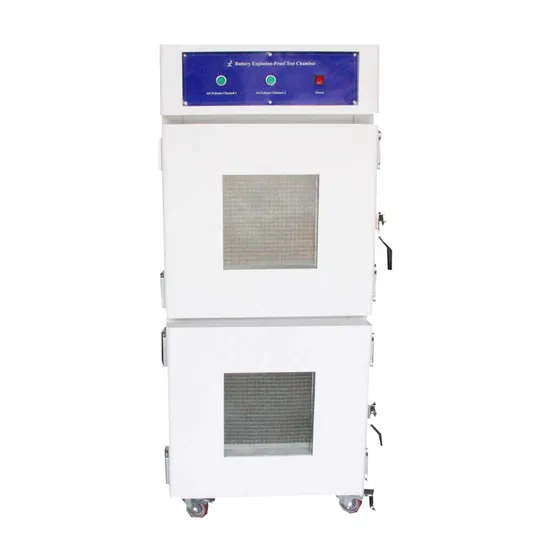

Lithium-Ion Battery Explosion Proof Test Chamber

Product Description

Battery explosive-proof test chamber
Overview Battery explosive-proof test chamber is mainly used for protection on technicians and machines in battery over-discharge test. The chamber can be customized for different needs of test.
Standard:
GB 31241-2014; GB/T 18287 -2013; GB/T 8897.6-2008; YD/T 2366.1-2011; GB/T 21966-2008, MT/T 1051-2007
Specification

Internal Size(single chamber)	800*800*800mm L*W*H
Internal Material	A3 Steel board with bake paint coating Thickness: 1.2mm
External Material	SUS #201 Stainless board Thickness: 1.0mm
Material	Single, double, inner door is made of stainless steel, and silica gel is used to tighten the door and chamber.
Door	Equipped with observation window; There is a strong connecting hinge, explosion proof handle between the door and chamber
Observation window	250*250mm
Test hole	D.50mm; for power-on test.
Teflon tape is added inside the chamber, which is for a effective insulation, flame retardant and easy to clean up.
The separate test panel controls the lighting and exhaust of each test room. When samples burning, the fan automatically works and exhausts smoke.

Advantage Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE Customer Support Services Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair Recommend Products Company Profile
Dongguan Xinbao Instrument Co., Ltd, with its own brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, aviation, etc.
Manufacturing Technique Customer Photos Now OTS has its main production base in Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines under CNAS calibration, so customers can check the function and quality immediately. Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What's more, OTS has enough stock to satisfy customers need in time. In the meanwhile, every machine must be examined for 3~days before shipment and with lifetime maintenance service. Certifications Packing&Shiping FAQ 1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention~Thank you!

---
