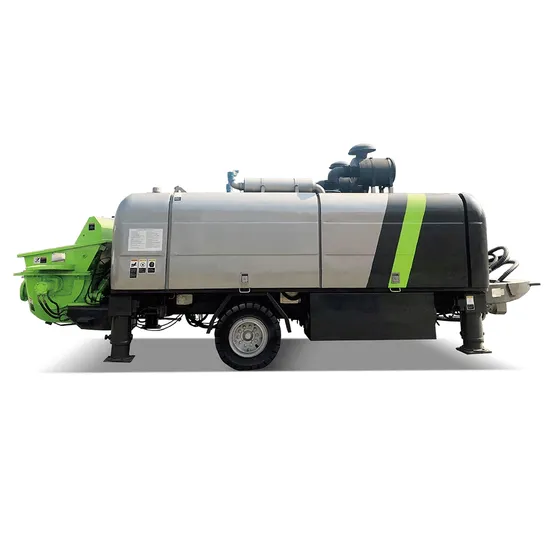

90 M3/H Output Hbt110.26.372RS Portable Trailer Diesel Concrete Pump Truck

US$135,000.00
1-2 Pieces
US$130,000.00
3-4 Pieces
US$125,000.00
5+ Pieces

Basic Info.

Model NO.
HBT110.26.372RS
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
90m²/h
Feeding Height
1410mm
Vibrating Amplitude
1.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Green
Maximum Theorical Output
112/73m3/H
Maximum Theorical Pressure on Concrete
160/260bar
Strokes/Minute
26.5/16.6min -1
Concrete Cylinder
800L
Filling Height
1410mm
Hydraulic System Type
Open
Power
2*186kw
Weight
13000kg
Transport Package
Comply with Export Packaging Requirements
Specification
7700*2430*2800mm
Trademark
Zoomlion
Origin
China
HS Code
8413400000
Production Capacity
50000

Packaging & Delivery

Package Size
770.00cm * 243.00cm * 280.00cm
Package Gross Weight
13000.000kg

Product Description

Product Description

90 m3/h Output HBT110.26.372RS
Portable Trailer Diesel Concrete Pump
MAIN DATA Maximum theorical output: 112/73 m3/h
Maximum theorical pressure on concrete: 160/260 bar
Power: 2×186 kW

FEATURE
Energy Saving
Self-adaptive variable power distribution control technology.High-Reliability: Key parts and components, after 100,000 m³ concrete assessment.
High-Reliability
Working condition adaptive pumping mode switch, the chance of pump block reduced by more than 50%.
Product Parameters

Maximum theorical output 112/73m3/h
Maximum theorical pressure on concrete 160/260bar
Strokes/minute 26.5/16.6Min -1
Concrete cylinder(diameter*stroke) Φ200mm*2100mm
Hopper capacity 800L
Filling height 1410mm
Maximum aggregate diameter 50/Φ150mm
Inside diameter of delivering pipe 40/Φ125mm
Inside diameter of pipe Φ125/Φ150mm
Hydraulic system type Open
Power 2*186kW
Length*width*height 7700mm*2430mm*2800mm
Weight 13000kg
