Automatically Calculates The Cutting Position Adjustable Depth and Angle CNC Grooving Machine

Product Description

Product Description

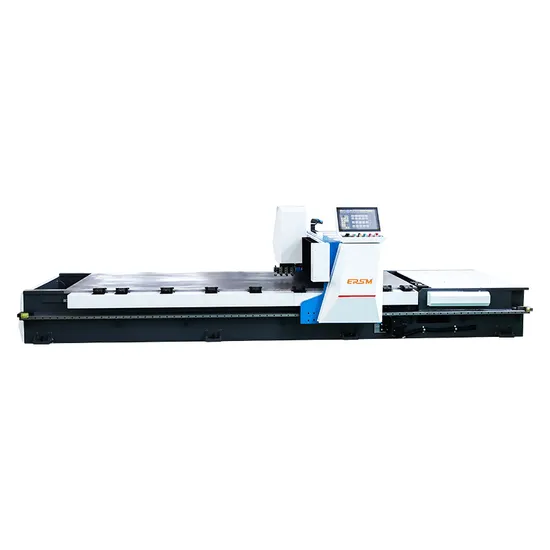

1.GVF-1540 Automatic four-side grooving machine is a professional grooving machine for all metal plates, stainless steel plate, copper plate, aluminum plate, galvanized plate and so on.
2.Grooving is an auxiliary process of plate bending and forming, using special equipment and tools to groove V-shaped grooves at the bending line where the plate needs to be bent and formed.
3. The working table is made of low alloy and high strength structural steel, which makes the overall rigidity of the machine excellent and durable.
4. Universal tool clamping mounting surface, can meet the requirements of a variety of tool clamping
5. 6 independent servo motors drive the tool holder with automatic rotation system, which can realize the
6. One-time molding four sides planing groove, greatly improve the dimensional accuracy, save labor costs and improve production efficiency.
Product Parameters

Model	GVF-1540
Machinable range
Width	1500 mm
Length	4000 mm
Thickness(stainless steel)	5.0mm
Table flatness	± 0.03 mm
Maximum shaft speed
X-axis	120 m/min
Y1-axis	80 m/min
Y2-axis	80 m/min
Z-axis	30 m/min
A Q-axis	20 m/min
Axis positioning accuracy	0.05 mm
Axis resolution	0.001 mm
Dimension	5980 *2420 *1650mm

Detailed Photos
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),NorthAmerica(10.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%), Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fastener Insertion Machine,Self clinching Press,Riveting Machine,Spot Welder,Clinching Fasteners
4. why should you buy from us not from other suppliers?
RSM Machinery CO.,ltd includes fastener insertion machine, self clinching machine, hydraulic steel/ironworker, turret grinding machine ,self clinching system , production line as well as other different kinds of machine tooling and accessories.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese

---
