Factory Price Industrial Composite Autoclave Carbon Fiber Autoclave Prepreg Bonding Autoclave Price Composite Curing Oven Autoclave

Product Description

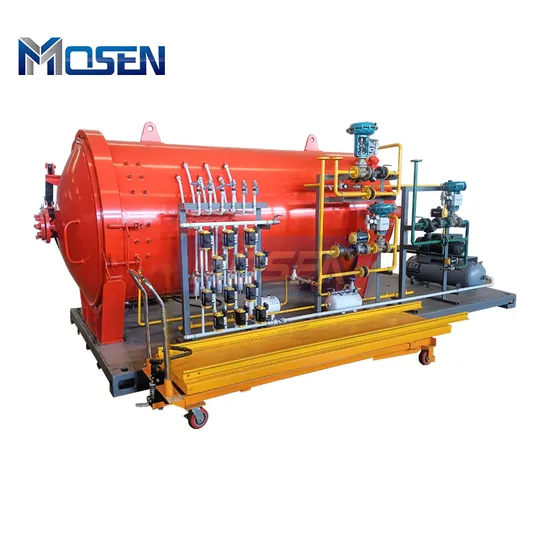

Product Description Industrial Composite Carbon Fiber Prepreg Autoclave Price Composite Curing For Sale The composite autoclave is designed to provide such controlled environments by subjecting composite materials to high pressure and temperature. It consists of a pressure vessel made of high-strength materials, such as carbon steel or stainless steel, to withstand the high internal pressure. The autoclave is equipped with heating systems, such as electric heaters or steam heating, to raise the temperature inside the autoclave. The temperature and pressure are monitored and controlled by a control system to ensure the curing process is conducted accurately.
The composite materials, along with any additional components or molds, are placed inside the autoclave and sealed to create an airtight environment. Once sealed, the autoclave is pressurized with compressed air or an inert gas, which allows for proper consolidation of the laminates. The temperature and pressure are then raised to the desired levels and maintained for a specific curing time. This process helps to bond the composite materials together and eliminate any voids or defects, resulting in strong and durable composite products.

Product Parameters

TYPE	DIAMETER(mm)	LENGTH(mm)	MAX.TEM.	MAX.PRE.	HEATING/COOLING RATE	CONTROL SYSTEM
DN0610	600	1000	160ºC	0.6MPA	0-3ºC/MIN	PLC
DN1225	1200	2500	180ºC	0.85MPA	0-3ºC/MIN	PLC
DN1530	1500	3000	200ºC	1.2MPA	0-3ºC/MIN	PLC
DN2040	2000	4000	220ºC	1.5MPA	0-3ºC/MIN	PLC

Application Composite autoclaves are widely used, especially in aerospace, automotive, sports equipment and other industries that require high strength and lightweight materials. They can produce composite parts with outstanding strength, stiffness and durability.
Company Profile
Our Advantages
Packaging & Shipping
FAQ Are you manufacturer or trading company?
We are a professional manufacturer.
Where is your factory located?
Our factory is located in Zhucheng, Shandong, China. From Qingdao where closes to us 1.5 hours to Beiing, 1.75hours to Shanghai, 4.5 hours to Guangzhou by air.
What is your business scope?
There are three categories, such as food sterilization machine, jacket cooker, rubber vulcanization autoclave.
How long the warranty will be?
1 Year warranty.
How about the installation? And what if the machine goes down?
We will do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticketvisa, accommodation and labor cost shall be on your side
b. On-ine service will be provided. lf stil is under guarantee period, the necessary accessories and parts will beprovided free but the transportation cost of it shall be on your side.
Can we become vour distributor in our country ?
Yes, welcome you! More details will be discussed if you are interested in being our agent.

---
