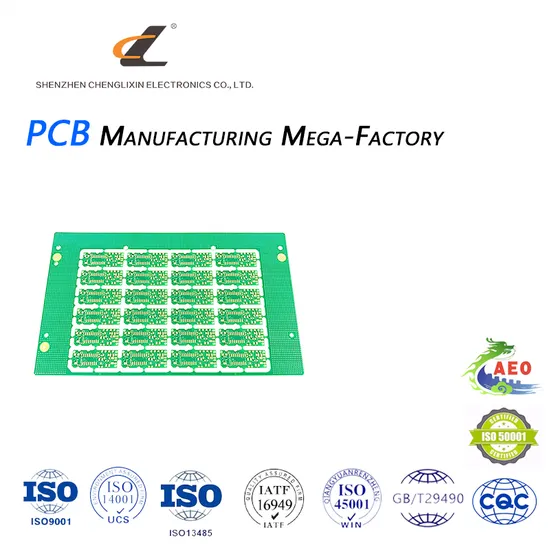

Shenzhen Factory Design Custom Wholesale Printing Complex Circuit High Sophisticated Electronic Medical Communication Enterprise Products PCB Circuit Boards

Product Description

Home	Products	About Us	Solutions	Discover	Contact Us
Communication equipment PCB Board			Electronic products PCB Board
Industrial control PCB Board		Automotive PCB Board		Aerospace PCB Board
Single-Sided PcB Board		Double-Sided PCB Board		PCB 4-Layer Board
PCB 6-Layer Board		PCB 8-Layer Board		PCB 10-Layer Board
Multi-Layer PCB Board Maximum 24L		Copper PCB Board		Ceramic PCB Board
Rigid-Flex PCB Board		Rigid PCB Board		Flexible PCB Board
PCB High Frequency HighSpeed Board		Aluminum PCB Board		PCBA SMT

Technical support
01. Technical ability - Hard board

Design Features	2024	Special process design
Number of floors (maximum)	24L	1.Embedding copper ingot 2.Grading goldfinger 3.High frequency high speed material mixed pressing 4.Control deep drilling and back drilling
Maximum plate thickness	6.0mm
Minimum plate thickness	0.25mm
Inner layer copper thickness	1/3~4oz
Outer copper thickness	1/3 ~6oz
Minimum Through Hole	0.15mm
Min. blind hole (laser drilled)	0.05mm
Minimum buried holes	0.1mm
Through-hole plating aspect ratio capability	16:1
Plated filled hole aspect ratio capability	1:1
Minimum line width/spacing of inner layer	50/50μm
Minimum line width/line spacing for outer layer	50/50μm
Minimum BGA PAD	0.2mm
Minimum BGA pitch (centre)	0.40mm
Impedance control accuracy	±10%
Plated hole filling Dimple≤	10um
Maximum Patchwork Size (Mass Production)	610mm*720mm
Surface Finish	Immersion Gold / Immersion Tin / Immersion Silver / Gold Plating / Lead Free Tin Spraying / OSP / Immersion Gold + OSP
Soldermask Colour	Solder resist silkscreen: green, matte green, red, yellow, blue, black (matte black, glossy black), white Low pressure spraying: green

02. Technical competence - Material application

Material class	Key parameter	Material type Brand supplier Panasonic/Rogers/Shengyi/Guoneng/Ruilong/Zhongying/Lianmao/Taiguang/South Asia/Ultrasound/Taiyao
PTFE Series	-	R03003 AD300C Taconic RF30-7H RF-35 SG3300/GF300/GF255/SG7350D/SG7350D2 /mmWave77 GNC3304/GN300BP ZYF300CA ZYF220D RA300 RNP280 RP220
PPO Series	-	AeroWave300/mmWaveG
Hydrocarbon Series	-	RO4730 RO4003C RO4350 RO4534 RO4535 ZYC8300 RT350B LNB33 /LNB33C/ S7136H /S7136D IT998/E EM892K/K2
Extremely low loss	DF<0.002	(M8N)R-5795N TU943N/R Synamic9GN/GN2
Ultra Low Loss	0.004≤ DF<0.002	(M7N)R-5785N/GN Synamic8GN /Synamic8G /Synamic6N EM890K EM891K TU933+ TU883ASP IT988GSE
Ver y Low Loss	0.006≤DF<0.004	(M6)R-5775/G/N Synamic6/GX IT968/G /SE IT988G EM528/K EM890 EM891 TU883/C/A TU885
Low loss	0.009≤DF<0.006	(M4)R-5725/S S7439 S7439G S7439C SDI06K IT150DA IT170GRA2 IT958G EM526 EM888/S EM888K TU872LK TU872SLK TU863+ TU872SLKSP
Mid loss	0.018≤DF< 0.009	(M2)R-1577 EM828G EM370(D) EM390 TU862HF TU865 S7040G S7045G SML02G(X) IT150GS IT170GRA1 IT170GT
FR4	CAF	S1150G S1000H Autolad1 S1000-2M Autolad2G Autolad3 Autolad1G Autolad3G IT150G IT158 IT180A IT180I NP155F NP175F NPG151 GW1500 GW1700-1 GW2000-1 GW3000A

03. Technical ability - soft and hard board

Design Features	2024	2024
Material specification	FCCL 12-50um (Electrolysis/calendering)	-
	Covering film 12-50um (Yellow/Black)	-
	Low-flow glue PP 40-100um	-
RF layer number	Number of floors	10L
Total plate thickness	Thickness	0.25-2.0mm
Copper thickness	Inner & Outer layers	1/4-2OZ
Surface treatment	Processing mode	-
Line width/line distance (minimum)	Face copper thickness =36	70/70μm
Aperture /Pad(min)	Mechanical drilling PTH	100μm/300μm
	Laser drilling Via	50μm/200um
impedance	Impedance specification	10%
Solder resist	Alignment tolerance (CCD/DI)	50um/20um
Soft and hard board interface area	Overflow specification	0.5mm
Steel sheet/reinforcement	Fitting tolerance	150um
W/B zone	Flatness (front/back)	20um/30um
Appearance	Forming tolerance	150um

Product Cases
FAQ Q1.Are you trading company or manufacturer ?
A: We are manufacturer with a separated factory.
Q2.What do I need to offer for production?
A: Basiclly PCB Gerber file and BOM list, if you have other requirement,just let us know.
Q3.MOQ?
A: There is no MOQ. We are able to handle Small as well as large volume production with flexibility.
Q4.What is needed for quotation?
A: PCB : Quantity, Gerber file and Technic requirements(material, surface finish treatment, copper thickness, board thickness )
PCBA: PCB information, BOM, (Testing documents)
Q5.What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q6.Are my files safe?
A: Your files are held in complete safety and security. We protect the intellectual property for our customers in the whole process.
All documents from customers are never shared with any third parties.
Q7.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us
to quote you the shipping cost.
Q8.Do you accept process materials supplied by clients?
A : Yes, we can provide component source, and we also accept component from client.
Q9.Your production delivery date?
A : After confirming the product, we will confirm and inform the customer of the accurate production schedule and delivery time. We will make every effort to ensure that the product is delivered within the specified time, so we will arrange the production line by the independent foreign trade team of the factory.
Q10.Product qualification rate?
A : Our product pass rate is generally up to more than 99%, export business we should pay more attention to quality, so as not to cause economic losses on both sides, so we will ensure that the factory independent professional export business quality team for quality inspection.
Q11.Export services?
A : The factory has set up a dedicated export service business team and quality inspection team, this team does not participate in the business docking in China, so it can provide more comprehensive services and guarantees for trade customers.
