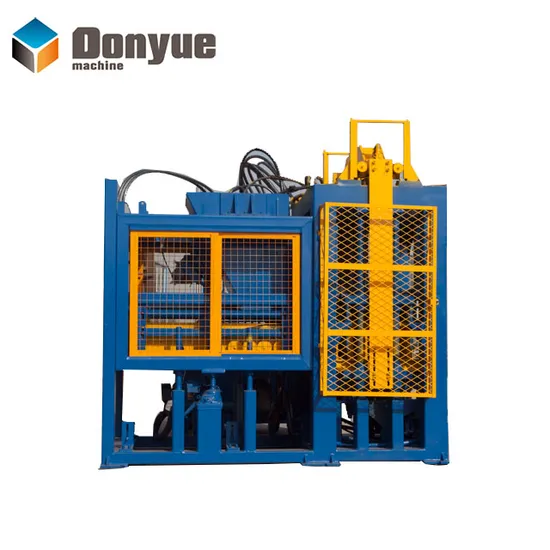

Interlocking Compressed Earth Block Dy-150t Interlock Brick Making Machine

Product Description

Product Description

Dimension of host machine
2850×2200×2850mm
Host machine power
32kw
2.Production capacity of interlocking compressed earth block DY-150T interlock brick making machine

3.Worker arrangement of interlocking compressed earth block DY-150T interlock brick making machine


4.High Quality and Great Performance of interlocking compressed earth block DY-150T interlock brick making machine
√. Use German Siemens Motor, this brand produce the best motor in the world, its lifespan is 1.3 times than that of common motor
√. Japan Mitsubishi PLC control system and Omron travel switch, man-machine interface, achieve dialogue and exchange between man and machine. Dozens of mechanical action of different products could be adjusted through the menu to select the addition and subtraction without needing professionals.
√. As a multi-purpose machine, exchanging mold can produce normal bricks, hollow bricks, multi-holes' bricks
√. Scatter material through revolving 360 degree, this process likes to mix the material again after the mixer, the technology makes the blocks evenly and high density
√. Block mould get heat treatment, use carburizing, antiwear ability is 1.2 times as the other mould
√. When pressing, the excess oil will be turned to Li Zhen-hit, and computer controlled directional vibration, frequency and brake to cancel the vibration energy
√. Hydraulic brick forming machine using feeding in low-frequency, vibrating in high-frequency, and increasing in Head tanks. Table and Mould vibrating together will make concrete fully liquefied and exhausted in 2-3 seconds to achieve high-density and high strength, Particularly be suitable for the production of high-strength blocks, you can stack immediately after forming
5.Standard Allocation of interlocking compressed earth block DY-150T interlock brick making machine
1.Screw conveyor 2.Cement scale 3.Batching Machine 4.Belt Conveyor Machine 5.Concrete Mixer

6.Batching and Mixing Controller 7.Forming Machine 8.Material Feeding Machine

9.Pallets feeder 10.Brick Conveyor Machine 11.Hydraulic Unit 12.Clean Machine

13.Automatic Control System 14.Electricity box 15.Stacker

6.Ganrantee of interlocking compressed earth block DY-150T interlock brick making machine (1)We can supply one year guarantee period for our brick making machines,if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
(2)Within one year ,if the client meet the unsolvable questions ,we could fly to client place to help

Block simple of interlocking compressed earth block DY-150T interlock brick making




6. Dongyue block machinery picture
Hydraulic station Stacker


7. Mould picture of cement brick making machine in sri lanka

Moulding area

800×600mm

Vibration force

45kn

Moulding period

15~20s

Mixer model

JS500

The size of the pallet

940×830×20/25mm

General water consumption

8T/DAY

Weight of the host machine

11.5T

Factory aera

300m3

Size(L×W×H)

Pcs/mould

Pcs/hour

Pcs/8hour

400×100×200

12

2160~2520

17280~20160

400×150×200

8

1440~1920

11520~15360

400×200×200

6

1080~1260

8640~10080

400×250×200

4

720~840

5760~6720

230×110×70

30

5400~6300

43200~50400

Paver:200×100×60

24

4320

34560

Paver:200×163×60

9

1620

12960

operate

1

Material loader

1

Drive forklift

1

Feeding pallets

1

Maintain

1

Total

5

---
