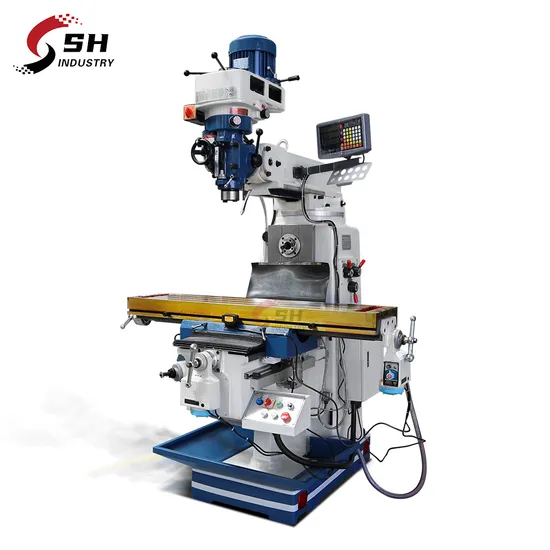

Vertical and Horizontal Turret Milling Machine Universal 4hw5hw X6330 CNC Milling Machine Metal Milling Machine

Product Description

Fresadora Mill Machinery 4hw 5hw X6330 Good Price Conventional Vertical Horizontal Knee Type Taiwan Turret Head Universal Milling Machine
Product Description
Feature:
1 .Taiwan original milling head, NSK P4 spindle bearing.
2.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
3.Work Table Made by HT200-250 High Strength Cast Iron
4. With the horizontal milling function
5.Plastic Guide Way Increase The Precision And Service Life
6.Three Axis can Fix (X/Y/Z) Automatically Feed .
7 .Taiwan original milling head, NSK P4 spindle bearing.
8. Dovetail Type , Rectangle Type ,Horizontal Type .Can Choose
Main technical specifications:

Model	Units	4HW	5HW(X6330)
Table size(mm)	mm	1270X254	1370X305
Long travel(mm)	mm	780	900
Cross travel(mm)	mm	400	400
Vertical travel(mm)	mm	370	420
T-slot No. and size		3x16	3x16
Ram travel(mm)	mm	500	500
Distance from spindle nose to table surface(mm)	mm	0-500	0-500
Spindle hole taper	mm	Standard:R8 Optional: ISO30/ISO40	Standard:R8 Optional: ISO30/ISO40
Spindle travel(mm)	mm	127	127
Spindle speed		Standard:16steps Shift grade: 50HZ:65-4500 60HZ:80-5440 horizontal 45-1350(12 step less)	Standard:16steps Shift grade: 50HZ:65-4500 60HZ:80-5440 horizontal 45-1350(12 step less)
		Optional : stepless Variable: 65-4500	Optional : stepless Variable: 65-4500
Auto quill feed	kg	Three steps: 0.04/0.08/0.15 mm/revolution	Three steps: 0.04/0.08/0.15 mm/revolution
Telescopic stroke	mm	470	470
Spindle power	KW	V 2.2KW/3HP/ (Optional 5HP) H 2.2KW / 3HP	V 2.2KW/3HP/ (Optional 5HP) H 2.2KW / 3HP
Head swivel	°	90	90
Head tilting	°	45	45
Dimension of package	mm	1516x1550x2235 1680x1790x2235(include 2 sets) 1650x2285x2235(include 3sets)	1516x1550x2235 1680x1790x2235(include 2 sets) 1650x2285x2235(include 3sets)
G.W./N.W. (kg)	Kg	1100/1450	1200/1550

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
