Inmax Manufacturer M12 Switch with 8 Port X-Coded 48V Managed 1000m

Product Description

Product Description

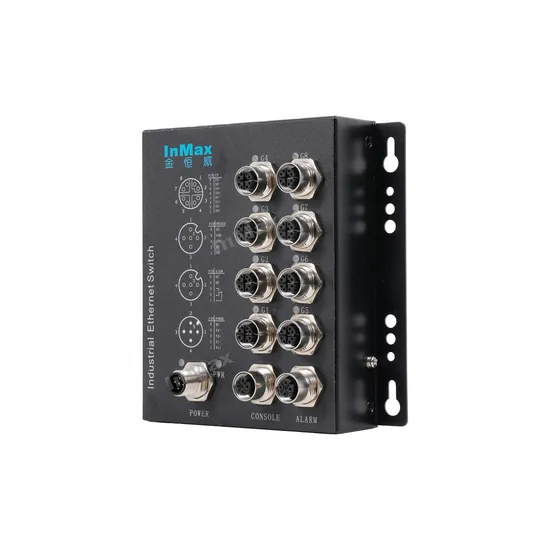

M708B Gigabit Managed Railway Industrial Ethernet Switch Features and Benefits ☆Meet the EN50155 railway industry standard requirements.
Designed for railway transportation, vehicles and PIS system applications.☆With 8×10/100/1000M M12 BaseT ports.☆With 8 X M12 PoE ports, 15.4W/30W output power of each PoE port.(R708B)☆Automatic recognition of power consumption and power supply mode of network equipment.☆Optional function: bypass function(1- 2 port) for power-off protection.☆Redundant dual 48VDC power inputs. Built-in overcurrent protection, Reverse connection protection.☆Support one-way relay alarm function.☆-40 to 75ºC operating temperature range (WT models).☆No fan, low consumption, industrial design standard, industrial grade electronic components,environmental protection & lead-free production.☆High strength metal housing, support wall mounting.☆IP Rating up to IP40 (Optional IP67 waterproof housing).☆Without packet loss in 72 hours full load flow test.
Introduction☆The M708B series M12 managed railway PoE Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. ☆The N708B Ethernet switches provide 8 gigabit Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10/100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions. ☆No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.
☆It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75ºC working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection. Product Parameters

Product Name	M12 Gigabit Railway PoE Industrial Ethernet Switch
M12 Ports	M12-8Pin X-Coded 1000M Connector
M12 Power Port	M12-5Pin Power port connector
Input Voltage	48VDC
IP Rating	IP40
Dimension	145 × 140 × 50 mm
Weight	1.2kg
Operating Temperature	-40 to 75ºC

Detailed Photos
