Plate Mounting Machine Zb- 1200 mm

Product Description

Characteristics:

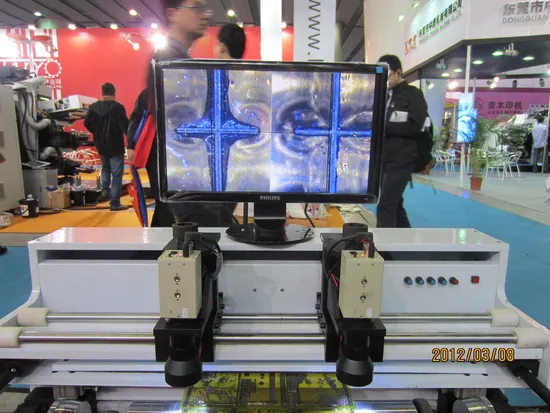

Employed up and down adjustable precise screw unit,Japanese SINCO high grade amplified lens,CCD camera,HF liquid crystal monitor for displayer
Adopted upper and down adjustable Japanese SINCO high grade amplified CCD camera,HD liquid crystal monitor for its displayer
The camera can be adjusted in all directions,Higher precision of printing plating adhesion and accurate registering
The printing plate can be stuck in telescope
Faster sticking the printing plate ease of operation higher production capacity
Applied to printing the relief printing materials like soft rotary printing and resin printing
Main Technical Variables

Model	L	D	H
ZB-450	700	1060	1820
ZB-950	1200	1060	1820
ZB-1500	1750	1060	1820

Attention: Special orders with special size
PRICE:
ZB-450 Flexo printing machine FOB NINGBO/SHANGHAI : USD2578
Delivery Time:
30days after receive the advance.
Payment:
30%TT in advance, 70%TT should be received before shipment.
Characteristics:
RZ650C, 760C900C PC-controlled integrated water wash flexible plate making machine(FPMM) series are applicable for manufacturing water washed flexible plates, and integrating such functions as exposure, development, de-adhesiveness, and curing. The mechanism of those washers is suspended mechanical drive and horizontal two-way rotation. The time for exposure, deadhesiveness, washing and curing are monitored with the PC.

Mobel\lterm	Plate-making Size(MM)	Power	Making Size(MM)	Net Weight(Kg)
RZ650C	650*450	220V,50Hz,2.2Kw	1015*855*1350	260
RZ760C	760*460	220V,50Hz,3Kw	1100*920*1350	320
RZ900C	900*600	220V,50Hz,5Kw	1190*950*1350	450

---
