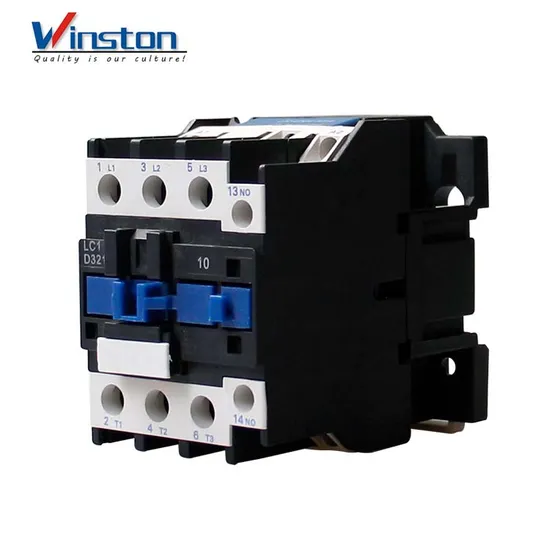

Free Sample Cjx2 9A 12A 18A 25A 32A 40A 50A 63A 80A 95A Magnetic AC Contactor with CE

Product Description

Description
Contactor LC1-D OLD series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4.
Technical data

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts	Remark
				220V	380V	415V	440V	660V
LC1-0910 0901	660	20	9	2.2	4	4	4	5.5	3P+NO 3P+NC	Installation method 1.with two screws 2.35mm din rail
LC1-1200 1201		20	12	3	5.5	5.5	5.5	7.5	3P+NO 3P+NC
LC1-1810 1801		32	18	4	7.5	9	9	9	3P+NO 3P+NC
LC1-2510 2501		40	25	5.5	11	11	11	15	3P+NO 3P+NC
LC1-3210 3201		50	32	7.5	15	15	15	18.5	3P+NO 3P+NC
LC1-4011		60	40	11	18.5	22	22	30	3P+NO+NC	Installation method 1.with three screws 2.75mm or 35mm din rail
LC1-5011		80	50	15	22	25	30	33
LC1-6511		80	65	18.5	30	37	37	37
LC1-8011		125	80	22	37	45	45	45
LC1-9511		125	95	25	45	45	45	45

Type			LC1-09	LC1-12	LC1-18	LC1-25	LC1-32	LC1-40	LC1-50	LC1-65	LC1-80	LC1-95
Pick-up voltage 50/60Hz(V)			(0.85~ 1.1)Us	(0.85~ 1.1) Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85 ~1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us
Release voltage 50/60Hz(v)			(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us
Coil power	50Hz 60Hz	Pick-up(VA)	70	70	110	110	110	200	200	200	200	200
		Holding(VA)	8	8	11	11	11	20	20	20	20	20
		Pick-up(VA)	80	80	115	115	115	200	200	200	200	200
		Holding(VA)	8	8	11	11	11	20	20	20	20	20
		Power consumption (W)	1.8~2.7	1.8~2.7	3~4	3~4	3~4	6~10	6~10	6~10	6~10	6~10

Details
TRADE INFO
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery

---
