8 Colors Kyocera Printing Heads Digital Inkjet Label Printing Machine

Product Description

Product Description

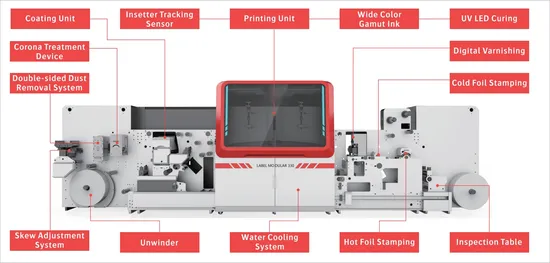

	Brief introduction Label modular 330 is a digital inkjet Modular-link hybrid roll-to-roll label printing machine. It conbines functions in a flexible way to establish coating, Printing, Varnishing, Foli-stamping, One-click production and High precision printing quality.
	Software-Apogee Benefits Combines different Apogee solutions, such as Preflight, Impose, on-line approval, and more. Brings significant quality improvements to avoid unwanted and unpredictable output. Increases throughput and efficiency via Digital Quick Strip (DQS). Provides first-rate versioning support, extended digital print support, and improved job handling.
	Printing head and colors The machine uses Kyocera piecoelertric printing heads. Customers has options based on their printing resolution requirements. Each printing head has its own control board to control, makes printing more efficiency and easier to maintain.
	Stable and high-speed prnting unit Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 600 X 1200 dpi, guaranteed excellent print quality.The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration, and makes the printed matter more aesthetic.
	Automatic winding and unwinding system Effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.High linkage winding system, fully automated, to maximize automated production.

Product Parameters

ECOO Label Modular 330
Model	Ecoo Label Modular 330
Printing Technology Piezoelectric Inkjet Print Method Roll to Roll, One -Side Color Configuration Support up to 8 colors Number Of Channels 8 Maximum Speed 50m/min(CMYK); 25 m/min(CMYK+W) Resolution 600x600 dpi/600 x1200 dpi Ink Type UV Ink Curing Method UV LED + Mercury lamp Media Width 150-350mm Maximum Print Width 324mm Media Thickness 50-400um Media Type PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc Maximum Media Roll Diameter 700 mm Power supply 380V Power 30kw Compressed air >6.5MPa Air consumption >10L/min Operating environment Temperature: 20ºC-27ºC, Humidity: 40%-70% relative humidity Skew Adjustment System yes Electrostatic Dust Removal yes Water Cooling System yes Coating Unit optional Digital Varnishing optional Cold Foil Stamping optional Hot Foil Stamping optional Visual inspection optional

FAQ
1. How many color does this machine print?
CANDY: It is modular printing machine. It has digital printing units and flexo printing units. Based on printing requirements, we can add max. 9 printing units. More colors means better printing performance.
2. what are other functions?
CANDY: The machine can do varnishing, foil stamping and cutting for optional.
3. what printing ink does this machine use?
CANDY: Use inkjet printing ink, our price is $80/liter.
4. What is the printing head, how long is the warranty for printing heads.
CANDY: For this models, we use Kyocera printing heads. But customer can choose different printing heads to satisfy their printing speed and resolution. We have solutions for this. Price varies from heads details too.

---
