Khr-a Portable Smart Quenchant Cooling Performance Testing Detector for Heat Treatment

Product Description

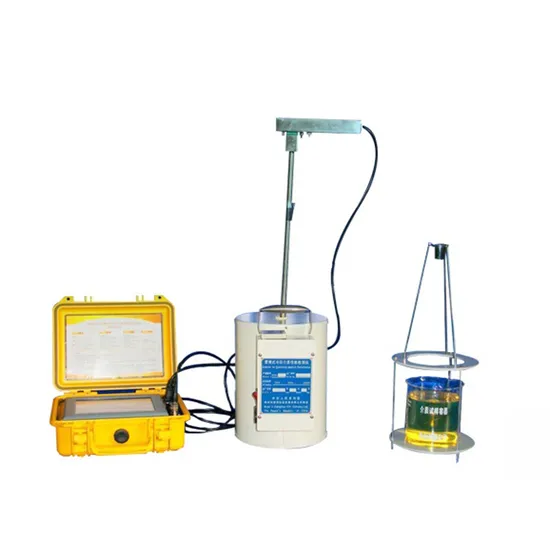

KHR-A Portable Smart Quenchant cooling performance testing detector
(Patented Product, Patented No.:ZL200820069148.0)
Functions:
Detect quenching medium regularly. To judge whether the cooling medium should be changed or not. Detect the cooling performance of different parts of cooling medium , and optimize the cooling process and equipment. Quenching quality accident (quenching cracks, deformation. not quench) analysis For cooling medium production factory Analysis the relation of the component part of medium and the cooling performance. Confirm the composition of quenching medium. Help to develop new products Control the product quality.
Measurement record device
PERFORMANCE Sampling speed:Max1000 times/S Measurable max cold speed:2000°C/S LCD touch screen size:8 feet, can read the curves or data in the screen directly. Power supply:AC220V 50Hz,50W Outline dimensions:290×250×130mm Can store 64 groups data Can pass data to computer by USB cable
Probe
Probe in cone lontology size : 12.5x60mm Probe length: 600mm Thermocouple: Dia.1.5mm NiCr-NiSi, K type
Furnace:
vertical tube resistance furnace ;
Heating temperature: Less than 900 ºC ;
Heating time: Less than10 minutes;
Temperature Accuracy: ± 1 ºC;
Power Supply: AC220V, 50HZ, 1000W ;
Size: 310mm*210mm*320mm
Furnace type : Vertical tubular furnace Heating temperature: <900°C Heating time: <10min Temperature-control accuracy: ±1°C Power supply: AC220V 50Hz 1000W Outline dimensions: 310×210×320mm
PROTABLE DETECTOR IN HEAT TREATMENT
Portable Detector in Heat Treatment:
Production Function:
Detailed Photos
1.Can I purchase products which are not shown on the website?
Yes. Please send us your detailed requirements and we will try to help with your specific needs.
2.How can I place an order?
You can contact us by email (see contact page).
3.Where do you loading the goods?
Shanghai or Ningbo or Qingdao or Shenzhen port, etc.
4.How to make payment?
You can pay us by Paypal, L/C ,T/T and West Union,etc.
5.What is the type of our transportation?
As your requirement, by express, truck, rail, by sea or by air.
6.Can you offer the customers product sample?
Yes .After receiving your inquiry , we will arrange to send the sample within 3 days.
7.How do you pack the goods ?
According to customer's request.
8.What is your payment terms?
FOB Shenzhen, Guangzhou, Qingdao, Shanghai /Ningbo or other city in China , Or CIF Destination.
9.Can you also offer the service with OEM and ODM ?
Yes. We can offer OEM/ODM service. Please send us your brand information and specification.
10.How long is the warranty of your products ?
Generally, it's one-year-warranty. During the warranty period, we offer you free maintenance.
After the warranty time, lower price for customers buying breakdown parts.

---
