Product Details
Product Description
Product Description
Description
The rail pad, also known as the bottom plate, is an elastic polyurethane pad assembled between the rails and sleeper to protect the top of the sleeper from wear and impact. The initial stiffness of the rail pad is not so high that the deformation of the rails under the load of the spring is very large. This mechanism ensures that the rail pad moves as close as possible to realize close contact with the track.
As a professional manufacturer of rail fasteners, Kunshan Alex is able to produce rail pads of various rail pads, such as UIC54, UIC60, BS80lbs, BS100lbs, and so on. In addition, we can offer custom-made track pads according to drawings or samples.
Rail pads for ZBR rail fastening systems
Nowadays, the most common types of rail fastenings on the weldless track in the CIS countries are ZBR-65 and ARS-4, and the most promising for difficult operating conditions is ZBR-65PShM.
| Name | Dimensions (mm) |

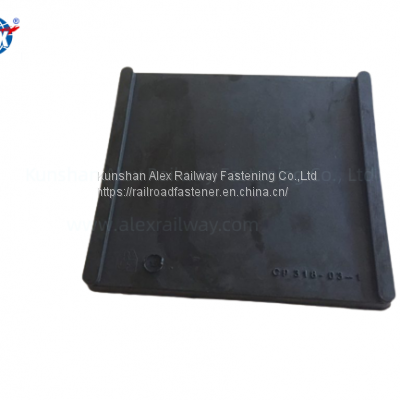

| CP-318-03-1 | 163x150x8/11 |
The advantages of our rail pads
Reducing life cycle costs
— Longer service life for rail pad and superstructure components
— Less wear of rails, sleeper and fastening (rail breakages, working of the rail into the sleeper etc.)
— Less rail corrugation on the railhead (short and long wave)
— Longer maintenance intervals
— Fewer possessions and service disruptions, hence greater track availability
Lower loads and emissions
— Vibration damping effect
— Reduction of forces acting on superstructure
— Decrease in acoustic emission thanks to improved contact surfaces between wheel and rail (less corrugation on the railhead)
Technical data for Kunshan ALEX under-rail rubber pads :
Item Name
| Railroad Rail Pad against vibration and structure-borne noise
|
Application
| UIC54, UIC60, BS80lbs,BS100lbs, or as per sample/drawing requirement
|
Material
| HDPE
| EVA
| Rubber
|
Technical
Parameter
| Density: 0.95-0.98g/cm3
Tensile strength: ≥19Mpa
Elongation: >80%
Melting point: 170-190°C
Insulation resistance: ≥1×1010Ω
Hardness:≥98A
| Density:0.95-0.98gcm3
Tensile strength:≥15Mpa
Elongation: >500%
Melting point: 170-190°C
Insulation resistance:≥1×1010Ω
Hardness: ≥90A
| Hardness:75±5A
Tensile strength: ≥12.5N/mm²
Elongation: ≥250%
Operating temperature:
-25°C~100°C
|
Color
| Dark Black |
Why choose us
01 We are a professional manufacturer of rail pads, with more than 10 years experiences of making kinds of railroad fasteners, we can meet your customized requirements in detail.
02 We have a workshop and do every step from purchasing material to shipment all by our team, so our prices are the most competitive under the same quality.
03 Our lead time can be adjusted to match your different schedules for different products. Normally 20-30 days is available for producing, inspection, and packing.
04 We care about the safety of using our products, with all our workers and technicians working together, it is guaranteed that our railway products reach international standards, such as AREMA, GB, BS, UIC, DIN, etc.
Quality Control
Kunshan Alex Railway Fastening Co., Ltd. is an ISO 9001/2008 certified company. All processes are in accordance with the requirements of the ISO quality management system. From raw material to the finished products, we operate in accordance with standard procedures. We have strict quality control systems for suppliers:
1. Strictly inspection and testing of raw materials
2. Regularly organize quality control coordination meetings with semi-product suppliers to provide technical support.
3.Both sampling and batch testing will be taken while producing to make sure products 100% qualified before shipment.
Certificate:
Other Certificates available on request.
Workshop shown:
Ways of packing for Anti Vibration Mat used in railroad
FAQ
Q: Are you manufacturer or trader?
A:We are manufacturer and trader, company located in Kunshan ,Jiangsu Province, China, about 2 hours take taxi from Shanghai airport.
Q: Do you provide samples?
A:Yes, we offer sample for approval before each order.
Q: What's your payment term?
A: 30% deposit by T/T , balance against B/L copy, Payment term is negotiable based on different order products and quantity.
Q: How long is your delivery time?
A: Generally 20-30 working days after receiving deposit or the original L/C. Could be re-schedule under really urgent case.
Q:Can we visit your factory?
A:Of course, you're warmly welcomed. Once we have your schedule, we can arrange everything in advance.
Contact details:
If you have any other questions, pls feel free to contact us as below:
Company name: Kunshan Alex Railway Fastening Co., Ltd.
Address: No.1255 Chengbei Road, Yushan town, Kunshan City, Jiangsu Province, China.
Tel: 0086 512-83639017
Fax: 0086 512- 83639019
Skype/whatsapp/wechat: 86 18914971437
>>
