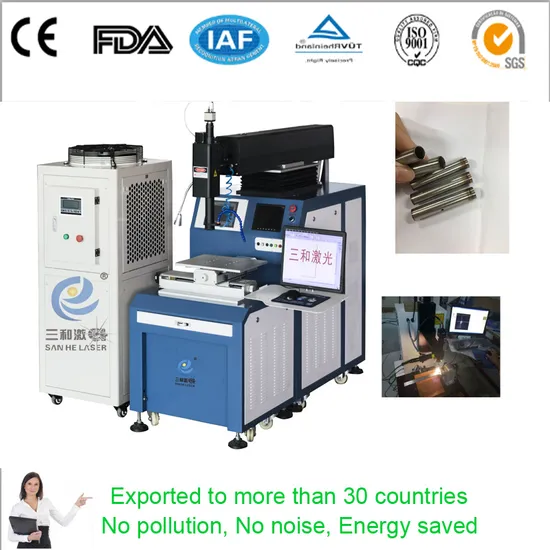

America Precise Positioning Welding Machine YAG Pulse Laser Resource

Product Description

Products:
Technical parameters:

Model	3HE-ZD300W/400W	3HE-ZD500W/600W
Host system dimensions	1500*700*1100MM	1600*700*1350MM
Cooling system size	820*580*1050MM	820*580*1050MM
Machine power consumption	10KW-12KW	15KW-18KW
Electrical requirment	380V±10%/50HZ/60A	380V±5%/50HZ/100A
Aiming and positioning	CCD and red light	CCD and red light
Laser material	YAG	YAG
Maximum laser power	300W/400W	500W/600W
Laser wavelength	1064nm	1064nm
weld munimun welding pool	0.2mm	0.2mm
welding depth	1.0mm	1.0mm
pulse width	0.1ms-20ms	0.1ms-20ms
pulse frequency	1-100HZ	1-100HZ
operating platform	DPS/PLC	DPS/PLC
adjustable facula size	0.2-3mm	0.2-4mm
positioning precision	0.2mm	0.2mm
repeating position precision	±0.2mm	±0.2mm
cooling method	Water cooling	Water cooling
observing system	CCD&microscope	CCD&microscope

Product application: Sanitary industry: pipe joints, adjustable fittings, tees, valves Battery industry: lithium-ion battery, assembled battery, electrode laser welding Glasses industry:stainless steel,titanium alloy materials glasses of snap and frame position precision welding Hardware industry: impeller, water kettle, water cup, wine pot, stainless steel bowl, sensors, diodes, aluminum, cell phone batteries, door knobs, stirrer, shelves and other complex stamping, cast parts welding. Product advantages: The latest DSP control system, more stability, easy to operate software, meet the needs of large range welding and complex products welding requirements. High efficiency and high welding speed, realizing automatic mass production on production line. Spot, line, circle, elliptical, square and other arbitrary orbit welding are allowed. Automatic focusing and rotating, arbitrary shape of products welding in 3D space. Samples:
Certifications:
Clients visit:
Contact us:

---
