Mini Plastic Type HDPE Extruder Small Film Blowing Machine

US$20,000.00-23,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XH-MNABA50
Type
Mini Film Blowing Machine
Raw Material
HDPE
Maximum Folding Width of Film
600 mm
Screw Diameter
50mm
Automation
Automatic
Computerized
Computerized
Machine Weight
2.2t
Certification
CE
Suitable Material
LDPE/LLDPE/HDPE
Film Width
100 - 600 mm
Cylinder Cooling
250W*2
Max Output
40 Kg/H
Screw L/D
30:1
Main Motor
15 Kw
Use Power
15kw/H
Air Ring
600mm
Max Traction Speed
60 M/Min
Max Winding Speed
60 M/Min
Winding Type
Surface Friction Type
Transport Package
Stretch Film Package or in Bulk
Specification
3000mm*2200mm*3500mm
Trademark
XIANGHAI
Origin
China
HS Code
847730900
Production Capacity
100 Set/Year

Packaging & Delivery

Package Size
300.00cm * 220.00cm * 350.00cm
Package Gross Weight
2200.000kg

Product Description

Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you! Product Description
Product advantage:
This machine Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance. , Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.
Main Technical Parameters
Model XH-MNABA45 XH-MNABA50
Suitable material LDPE; LLDPE; HDPE;
Max Film width 100-500mm 100-600mm
Max.output 40kg/h 45kg/h
Screw diameter 45 50
Screw L/D 30:1
Barrel Screw Sacm-645/38crmoala
250w*2 250w*2
Main motor 15 kw 18.5 kw
Power use 20kw/h 25kw/h
Roller width 600 mm 700 mm
Traction spped 5-60m/min
Type Surface frication type
Winding speed 5-60m/min
Machine size 2.6m*2.0m*3.9m 2.8m*2.2m*3.9m
Machine weight 2 T 2.2 T

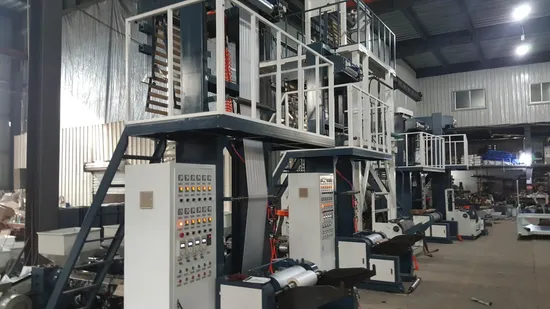

Overall picture
