Product Details
Product Description
Product Description

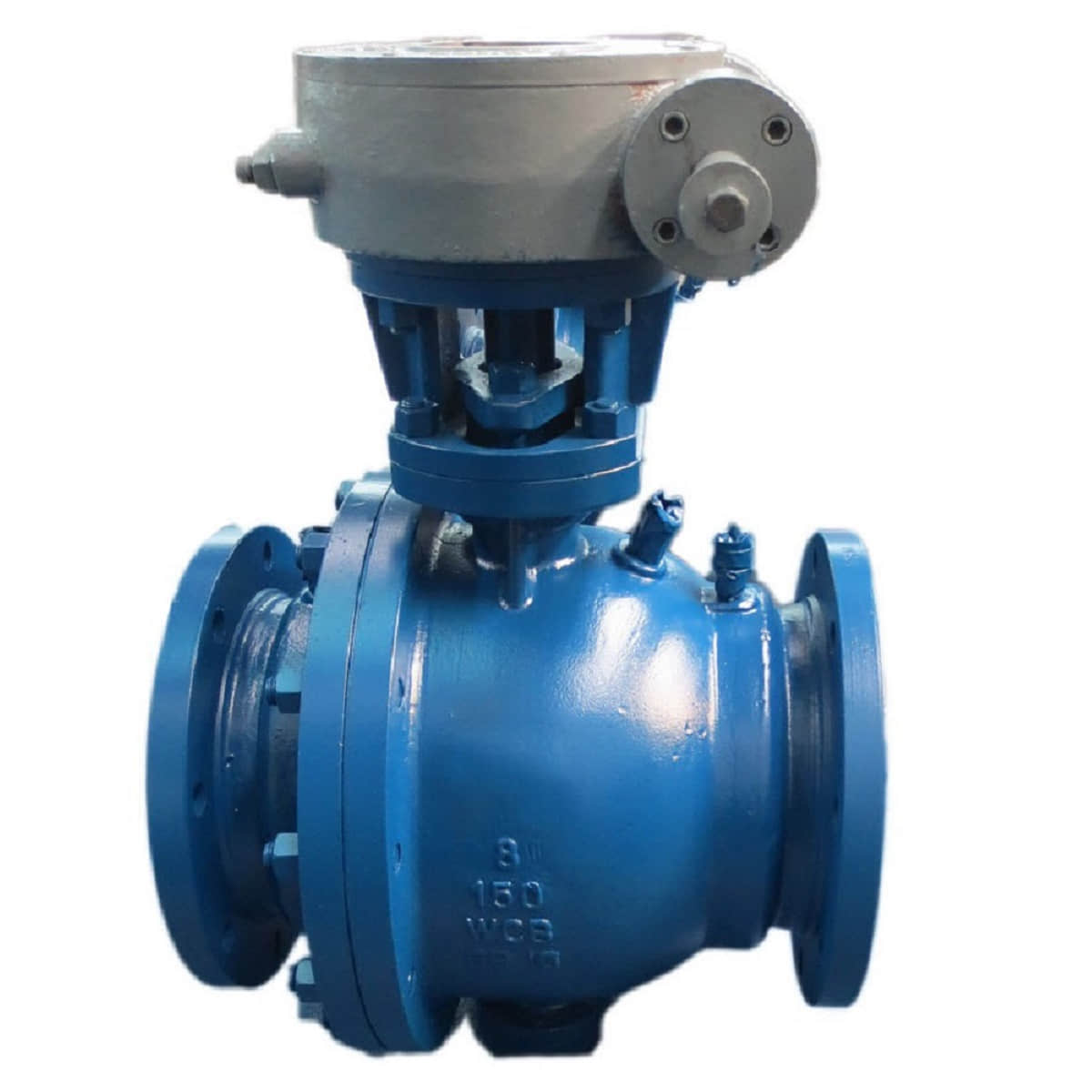

GeneralSize: 2″ and above.
Pressure Rating: 150LB and above
Design Temperature: ASME B16.34 pressure temperature rating.
General applications: water, oil , gas
DesignDesign & Manufacture: API 6D , ASME B16.34 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, ASME B16.10, BS EN 558
Connection: ASME B16.5, EN 1092, JIS 5K-20K. BW, RTJ are available.
Safety design: anti-static, fire proof, anti-blow out stem.
Additional: Double block and bleed.
General materialBODY: ASTM A216 WCB.
BALL: ASTM A105+ENP, ASTM A182 F6A, F304, F316
STEM: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 718, MONEL K-500
SEAT COLLAR:ASTM A105+ENP, ASTM A182 F6A, F304, F316
SEAT INSERT: RPTFE, DEVLON,NYLON, MOLON,PEEK ETC.
SPRING: INCONEL X-750
OPERATOR: LEVER OR GEAR
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.
TestInspection and approval norm: API598, API6D.
Quanlity control100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
What are valve standards?Many kinds of valves are used in the industrial process, and to ensure proper functionality, compatibility, and safety for end-users, EPC, or engineering, every country has particular organizations to make standards.
The major standard organizations include the American National Standards Institute(ANSI), American Petroleum Institute(API), The American Society of Mechanical Engineers(ASME), British(BS), China valve standards(GB, JB, HG), and so on. THINKTANK provides standard resources for all interesting valves friends study.
>>
