Automatic Plastic Can Making Machine

Product Description

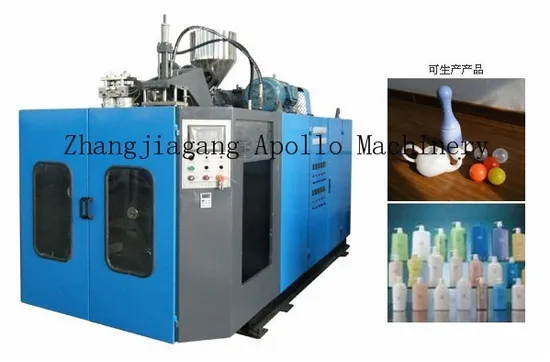

High speed blow moulding machine
Model No.: ABLB55II(double station double die head)
This type of blow molding machine ABLB55II can produce bottle, kettle, can, balls etc. The machine is especially designed for producing with material PE, PVC, PP so on. The productive capacity can reach 480~650PCS/hr.

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	TAIWAN JINSHUN/YUKEN
Oil pump and connection	TAIWAN JINSHUN/YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

Technical Parameters: ( ABLB55II )

Max. Product volume	2 liters
Out put capacity	480~700pcs/h
Screw diameter	55mm
Screw L/D ratio	24 L/D
Screw drive power	15 KW
Screw heating capacity	5 KW
No.of heating zone	3 zones
Output of HDPE	60 KG/H
Oil pump drive power	7.5 KW
Clamping force	45 KN
Max.size of mold	148-508mm
Mold stroke	150-500mm
Max.die diameter	140mm
Blowing pressure	0.6 mpa
Air Volume	0.5 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	40 L/MIN
Size of Machine	2.9x1.5x2.5m
Weight of machine	4.5 ton

---
