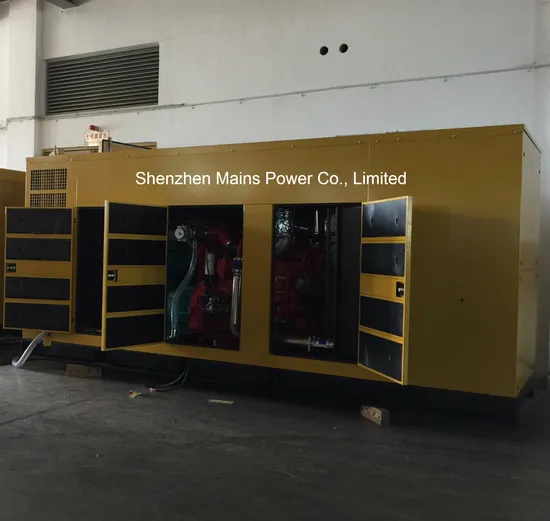

375kVA Cummins Technology Natural Gas Generator Mc375n Cummins Biogas Generator

Product Description

1. MAINS POWER gas generator set are developed and researched on the base of Cumins engine. 80% spare parts of Cumins diesel engine can be used for these Gas gensets. Customers can buy the parts from local Cumins agent. It greatly save maintenance cost and time.
2.For our ignition system, we use original America Altronic, the ignition time is very exact and the ignition power is big enough.
3. We research and develop the spark plug, the lifetime is more than 8000 hours.
4. For our gas intake system, we use the world most advanced solenoid valve like Germany Dungs and Italian Elektrogas. These solenoid valves can open gradually and shut off in very short time, which can protect the engine very well.
5.Use the speed governor and actuator from European, this system is more stable and reliable, it can react very fast when the load increase or decrease.
6. We also develop and research the automatic air-fuel ratio system, it can adjust the Gas and air flow rate to the engine automatically when the methane content in the biogas change.
Gas genset Model: MPN375C
Continuous power: 375KVA/300KW
Max power: 400KVA/320KW
Speed: 1500RPM, 50HZ
Compressure ratio: 11.5 : 1
Cummins Engine model: K19-330
Cylinder: 6 cylinder in line
Alternator: Stamford, Leroy Somer, Marathon
Controller: Deepsea, ComAp, Smartgen
Breaker: AB, CHINT
Optional: 1) Soundproof canopy, Containerized canopy
2) Synchronising system

Genset Model	Continuous Power		Model	Cylinder No.	Dimension
	kVA	kW
Yuchai Natural Gas generator
MY38N	38	30	4J50	4/L	1850*900*1350
MY50N	50	40	4J65Z	4/L	1850*900*1350
MY65N	65	52	4DC85Z	4/L	2000*1000*1450
MY80N	80	64	6BC115	6/L	2600*1100*1650
MY100N	100	80	6BC135	6/L	2600*1100*1650
MY125N	125	100	6BC170L	6/L	2700*1100*1650
MY160N	160	128	6AC220L	6/L	3000*1200*1700
MY190N	190	152	6AC250L	6/L	3000*1200*1700
MY250N	250	200	6MK350L	6/L	3200*1400*1900
MY325N	325	260	6T420L	6/L	3300*1500*2000
MY375N	375	300	6T350	6/L	3300*1500*2000
MY450N	450	360	6C660N	6/L	3700*1600*2300
MY500N	500	400	6C780N	6/L	3700*1600*2300
MY560N	560	448	6C840N	6/L	3700*1600*2300
MY650N	650	520	6C935N	6/L	3700*1600*2300
Cummins Technology Natural Gas generator
MC38N	38	30	4B3.9	4/L	1850*820*1350
MC50N	50	40	4BT3.9-50	4/L	1850*820*1350
MC100N	100	80	6BT5.9-100	6/L	2350*950*1400
MC150N	150	120	6CT8.3-145	6/L	2500*1050*1650
MC200N	200	160	6LT8.9-176	6/L	2500*1050*1650
MC275N	275	220	NT855-240	6/L	3000*1200*1900
MC325N	325	260	K19-280	6/L	3300*1400*2120
MC375N	375	300	K19-330	6/L	3300*1400*2120
MC500N	500	400	K38-440	12/V	4200*2100*2456
MC650N	650	520	K38-550	12/V	4200*2100*2456

Genset Model	Continuous Power		Engine Model	Cylinder No.	Dimension (L*W*Hmm)
	kVA	kW
Cat---MWM Natural Gas generator:
CM500N	500	400	TCG2016V8C	8/V	3090*1480*2280
CM750N	750	600	TCG2016V12C	12/V	3680*1480*2280
CM1000N	1000	800	TCG2016V16C	16/V	4060*1480*2280
Perkin Natural Gas generator:
MP380N	380	304	4006-23TRS1	6/L	3780*1720*2220
MP470N	469	375	4006-23TRS2	6/L	3780*1720*2220
MP530N	531	425	4008-30TRS1	8/L	4380*1850*2350
MP625N	625	500	4008-30TRS2	8/L	4460*1850*2350
MP875N	875	700	4016-61TRS0	16/V	5560*2600*2960
MP1100N	1094	875	4016-61TRS1	16/V	5560*2600*2960
MP1250N	1250	1000	4016-61TRS2	16/V	5660*2600*2960

---
