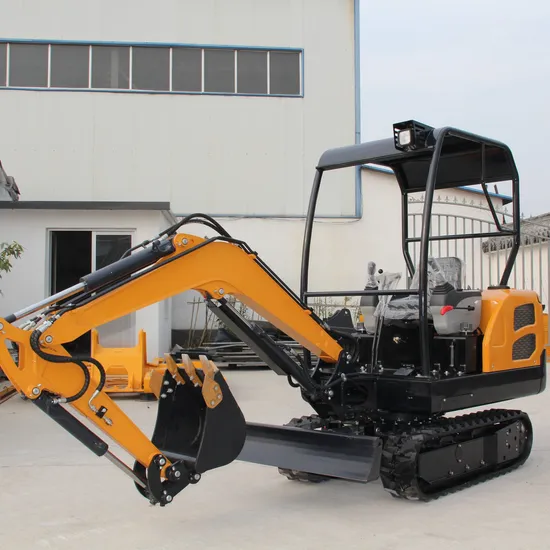

Mini Excavator Chinese Excavator Small Crawler Excavator Cheap Excavaor

Product Description

Mini Excavator Chinese Excavator Small Excavator Cheap Excavaor Product Feature And Advantage

1.Small size and easy to transport, could be loaded onto light truck or small trailer, two sets could be loaded into one 20GP container to save freight cost.
2.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
3.Famous brand hydraulic system parts ensure the stable quality.
4.equipped with double fuel filter to guarantee fuel purity to protect engine
5.boom deflection design meet narrow work condition, reinforced rubber track to protect road
6.extend hydraulic line for various attachments.
7.comfort seat make operator easy to work.
8.It's a update version of JH18 and also could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory

Technical Specification
Engine
Model	Laidong 3TE30 22.1kW/2200rpm
Type	Electronic injection, water cooled, natural intake
No. of cylinder	3
Main Performance
Swing Speed	r/min	12-14
Traveling Speed	km/H	2.8
Grade ability	%	70(35°)
Traveling Tracking Force	kN	15
Bucket Digging Force	kN	11.5
Arm Digging Force	kN	9.3
Hydraulic System
Hydraulic system working pressure	Mpa	16
Hydraulic Pump	Gear Pump	AHWY
Hydraulic pump flow	L/min	2×12+5
Swing Motor		Eaton
Traveling Motor		Eaton
Fuel Tank Capacity	L	26
Hydraulic Tank Capacity	L	27
Overall Dimensions
Overall Length	mm	4080
Overall Width	mm	1300
Overall Height	mm	2280
Ground clearance	mm	490
Track length	mm	1630
Track width	mm	250
Undercarriage width	mm	1270
Undercarriage ground clearance	mm	235
Dozer Blade	mm	1270×240

Company Profile
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(82.00%),South America(5.00%),Southeast Asia(5.00%),Oceania(5.00%),Mid East(3.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3.what can you buy from us?
Wheel loader/Mining Machinery/Forklift/Excavator
4. why should you buy from us not from other suppliers?
We have 20 years of professional experience in designing and producing loaders with1-6 tons capacity, for engineering, agricultural, mining virious use. Our products features reliable quality, good after-sales service, reasonable price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DAF.
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,Cash.
Language Spoken:English,Chinese,Spanish,Russian.

---
