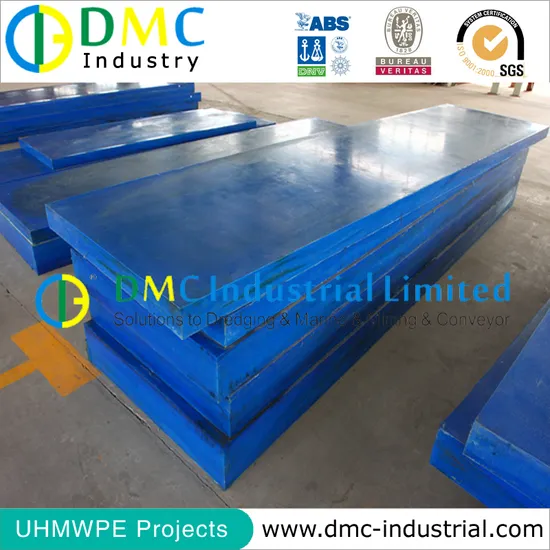

Marine Fendernon-Adhesion UHMWPE HDPE Liner for Truck Hopper Coal Bunker Lining Sheet

Product Description

UHMWPE Fender plates, HDPE pads,HDPE sheets,UHMWPE Plates,UHMWPE Sheets,UHMWPE board,UHMWPE HDPE ground mats Product Description Ultra-high molecular weight polyethylene (UHMWPE) is a kind of engineering thermoplastics with more than 3 million viscosity-average molecular weight. It differs from PE standard grades in its very high degree of polymerization.
Ultra-high molecular weight polyethylene sheet has superior performance over conventional HDPE sheet such as very high wear resistance, impact resistance, intrinsically self-lubricating, anti-adhesion, low temperature resistance and excellent chemical resistance. Product Parameters Properties comparisons of UHMWPE , HDPE and steel.

Item	Test method	Unit	UHMWPE	HDPE	Steel
Density	ISO1183	g/cm3	0.94	0.945	7.8
Melting temperature	ISO11357	°C	136	129	1410
Water absorption	ISO11359	%	<0.01	<0.01	-
Coefficient of linear thermal expansion	ISO11359	10-4/°C	1.5	1.2	0.17
Heat deformation temperature	ISO75	°C	85	71	1230
Yield strength	ISO527	Mpa	≥22	20	≥245
Tensile elongation	ISO527	%	≥250	≥350	20
Gap beam impact strength	ISO179	KJ/m2	No break	<27	No break
Rockwell hardness	ISO2039	R	40	33	45
Friction coefficient	ISO8295	-	0.05	0.28	0.58
Corrosion resistance	-	-	Excellent	Good	Bad

Application 1. It can be use in Machinery industry, Food industry, Paper-making industry, Chemical Industrial, etc. It is the best material used as bulk materials storage and transportation equipment lining, such as silos, flow ducts. It is widely used in electric power, steel, coal industries etc. 2. It can be made with coal, cement, lime, slag, salt, cereals, powdered material hoppers, silos, chute lining. Because of its excellent abrasion resistance, self-lubricating and non-sticky, so that the powdery material for storage and transportation equipment, adhesion phenomenon does not occur, to ensure a stable transport. 3. This high wear plate installed applications to adapt to a variety of environmental conditions, can be designed to assemble the connection structure according to user requirements, ease of installation and maintenance. If the operating conditions are very difficult to install underground mine hopper, chute applications, metallurgical industry, feed hopper, etc., can solve the transportation process bonding and sealing material of this long-standing problem, to achieve safe, efficient and normal production. 4. It used in transportation of liquid, solid, solid-liquid mixture in the funnel, drain tank flap, scraper conveyor chute mining, coal preparation plant, metallurgical industry, power plant, shipbuilding and other sectors, sieve jigger, flotation machine liner, liner board cargo vessels, large slide, tub, dump trucks and other cars lining of wear and corrosion applications.
Packaging & Shipping

---
