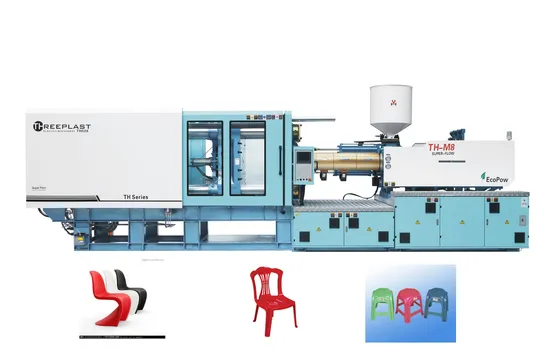

Household Items Chair Basin Crate Making Machine Injection Molding Machine

Product Description

This Servo drive machine is designed For your Universal Processing applications this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a wide range of materials . with a Nitrided +Alloy screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and output with a wide range of materials and with the most complex of molds .

Inovance Servo Driver Sumitomo Servo Motor Phase Servo Pump

TH600
Injection Unit		A	B	C
Screw Diameter	In	3.54	3.74	3.94
	mm	90	95	100
Screw L/D ration	L/D	23	21	20
Shot volume	in3	166.9	185.93	206.00
	Cm3	2736	3048	3377
Shot weight (PS)	g	2489	2774	3073
	oz	87.80	97.85	108.40
Injection Pressure	psi	26680	23925	21605
	Mpa	184	165	149
Max screw speed	rpm	149
Clamping Unit
Clamping Force	KN / T	6000 / 600
	U.S.ton	660
Opening stroke	In	34.25
	mm	870
Tie-bars distance	In	34.45 X 34.45
	mm	875 X 875
Max.mold height	In	35.43
	mm	900
Min.mold height	In	13.78
	mm	350
Ejector Stroke	In	9.84
	mm	250
Ejector force	KN	150
	U.S. ton	16.5
General
Pump power	Kw	37 + 37
	HP	49.58 + 49.58
Heating capacity	Kw	42.8
	HP	57.35
Oil tank Capacity	Litre	950
Machine Dimensions	In	401.57 X 86.61 X 106.69
	m	10.20 X 2.20 X 2.71
Machine weight	Kg	32000
	Lbs	70400

Factory photos
Cusotmers
Shipping

---
