New Generation Shotcrete Spraying Machine, Lhp40f Sprayed Concrete Robot/Wet Shotcrete Sprayer Machine/Tunnel Shotcrete

Product Description

Product Description

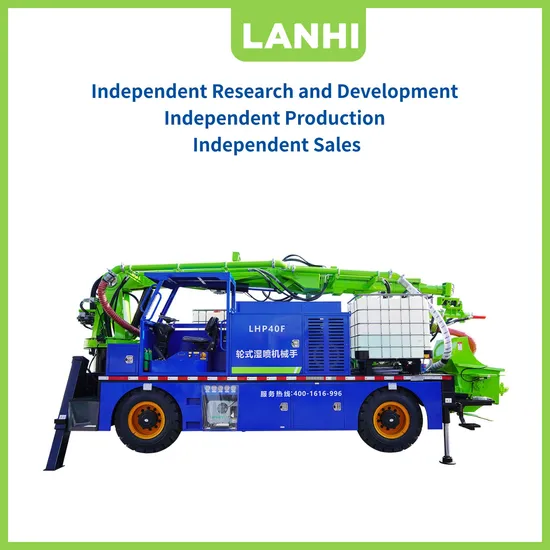

The LHP40F wheeled wet spray manipulator is a new generation of wheeled wet spray manipulator developed based on domestic and foreign wet spray machine technologies. The entire machine structure is optimized and upgraded, with low failure rate, high versatility of accessories and consumables, and low operating costs. This equipment possesses features such as high spray capacity, pipe blockage resistance, minimal rebound, and consistent and dependable operation. These attributes improve construction productivity and minimize concrete usage.
Maximum spray volume up to 40m³/h, with good spraying efficiency and blockage-resistant pipes;
The diesel-electric dual power system ensures swift construction progress.It features dual quick-setting agent tanks with a capacity of 1.5 cubic meters, which is suitable for the construction of large sections.
The machine features a small footprint, good flexibility, and is easy to enter and exit the site;
Accessories and consumables have high versatility and low operating costs; Product Parameters

Transport dimensions (L × W × H)	8340×2700×3250mm
Total weight	16t
Engine power	103kW
Installed electrical power	75kW
Operating mode	Electric construction + diesel-powered emergency
Control mode	Wireless remote control
Operating voltage	380V
Operating range (width × height)	26×15m
Chassis form	Operating chassis
Driving mode	One-way driving
Driving and steering methods	Four-wheel drive, front-wheel steering
Minimum ground clearance	420mm
Maximum grade	29%
Turning radius	10m (two wheels)
Maximum speed	15km/h
Approach angle/departure angle	16°/16°
Maximum spraying volume	40m³/h
Maximum particle size for spray aggregate	25mm
Hopper capacity	0.3m³
Capacity of quick-setting agent tank	1.5m³
Form of quick-setting agent pump	Squeeze pump
Discharge volume	/
Discharge pressure	/

Detailed Photos
FAQ
1,What can you buy from us?
Our current main products include comprehensive solutions for underground engineering machinery and intelligent mining equipment. This includes tunnel boring machines, integrated arch anchoring and spraying trolleys, arch anchoring trolleys, integrated arch drilling trolleys, arch frame installation trolleys, wet spraying rigs, and rock drilling rigs. We have the capacity to provide customers with integrated total solution services.
2,What about the MOQ?
The Minimum Order Quantity (MOQ) is 1 set.
3,What payment terms do you accept?
We accept T/T with a 50% prepayment.
4,What about the order lead time?
The usual lead time is 15 days.
5,What logistics methods can you use for shipment?
Truck delivery can be arranged in Central Asia and Russia, and you can also choose rail and sea shipping.
6,How is your delivery time?
The delivery time via China-Europe trains is 15 to 20 days, while sea shipping takes approximately 2 to 3 months.
7,How about your customer service and after-sales service?
We offer 24/7 online support and provide after-sales support in Russia and Central Asia.

---
