5kw 10kw 20kw 30kw Low Start Wind Speed Horizontal Axis Wind Power/Energy Turbine Generator Price for Home/Bussiness/off-Grid/Grid-Tied System

Product Description

Product Description Why choose AH-5KW wind turbine?
Leading technology-intelligent control, strong system scalability 1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
Recommended for: · Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection Product Parameters Technical specification

Model	AH-5KW
Rotor diameter(m)	5.6
Blade material & Qty.	FRP*3
Rated power(kW)	5
Rated wind speed(m/s)	11
Rated rotating speed(r/min)	240
Generator type	3-phase PMG
Working wind speed(m/s)	3-30
Start-up wind speed(m/s)	2.5
Survival wind speed(m/s)	60
Rated voltage(VDC)	400/240/custom made
Speed regulation method	Pitch-controlled
Wind answering method	Up wind
Stop method	Auto brake
Gale protection	Smart control+unattended
weight(kg)	400
Noise level(dB)	≤65
Tower height(m)	≥8
Tower model	Tilt-up tower
Working temperature	-20ºC~+50ºC

Detailed Photos Products Description

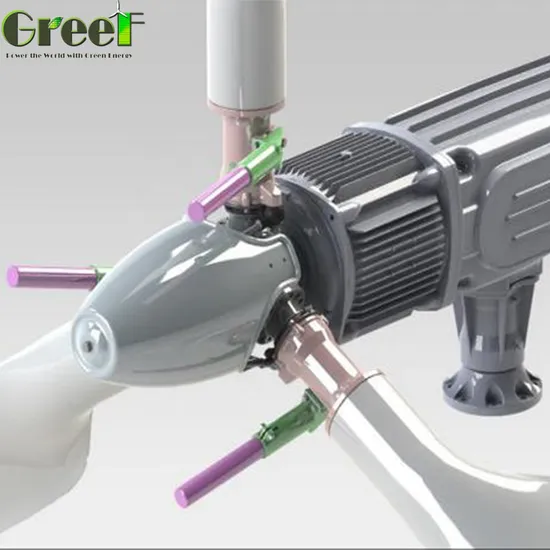

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more. (1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s; (2) Below the rated wind speed, the wind turbine outputs efficiently; (3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable. Project case 25kW Wind-solar-diesel Complementary Power Supply Project at Barracks of Garrison on Yongxing Island of Paracel Islands
New Energy Power Supply System at Communication Base Stations in Danish
On-grid Systems in Other Countries The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary. System Solutions
Why Choose Us We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.

---
