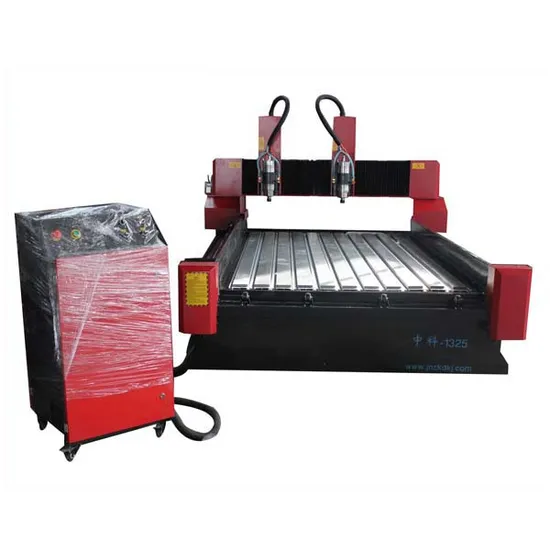

1325 Stone Engraving CNC Router Machine for Export Machine

Product Description

Featers
1 Taiwan TBL ball HIWIN guide rail
2 Z axis adopts Taiwan TBL ball screw
3 X Y axis are adopted with rack gear transmission of high precision
4 The frame is welded with thicker square thbe 8mm heavy duty body and is processed by high temperature tempering treatment
5 High torque steppe motor and stepper driver

Machine parameter

Items	Basic configuration
Certificate	CE
XY-axis working area	1200*1200mm
Material	Welded steel pipe machine holder and machine bed, cast iron vertical shafts and transom
Moving way	Gantry moving
Working table	Aircraft aluminum with T slot
Guide way	XYZ-axis linear square guide rail
Driving mode	XY rack gear, Z ballscrew
Z-axis working area	300mm
Max traveling speed	24000mm/min
Engraving speed	18000mm/min
Mechanical precision	0.05mm
Driving method	Stepper motor(XYZ:86BYGH450A)
Water cooling system	Stainless steel water slot
Spindle	5.5KW water cooling
Spindle speed	0-24000rpm
Collet type	ER25
Tools diameter	3.175mm, 4mm, 6mm,8mm,10mm,12.7mm
Control system	NCStudio control system
Design software when delivery	Artcam
Compatible design software	Artcam, Type3, Ucancam, JDPaint, MasterCAM
Command	G code ,U00, mmg nc,etc
Running ambient temperature	0-45°C
Relative humidity	30%-75%
Voltage	AC 380V,50/60Hz, three single phase Machine parameter

From different view:
FAQ:
Q1: How can I get suitable machine?
A:First: Please tell us what's your max working area.
Second: Please tell us what material will be engraved or cutted?
Third: Please tell us what kind of product do you want to get.
Those three answers will help us choice suitable CNC Router for you.
Q2: What is your delivery time?
A:It depends on what kind CNC Router you order? But for common CNC Router, our production time is 15 working days.
Q3: Do you have operation manual for machine?
A:Surely we have, there have how to intall and operation machine, how to maintain machine and what place need to be notice during using our machine. We will sent CNC Router manual to you with our CNC Router machine.
Q4: This is the first time I use this kind of machine, is it easy to operate?
A:Yes, We will send you manual and guide video in English, it can teach you how to operate the machine. If you stilldon't know how to operate it, we can help you by phone .
Q5:How should I pay for my order ? what is the procession of this purchase?
A:We accept TT by bank. you can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.

---
