Two Roll Open Rubber Mixing Mill|Lab Rubber Mixing Machine Mixer Mill

Product Description

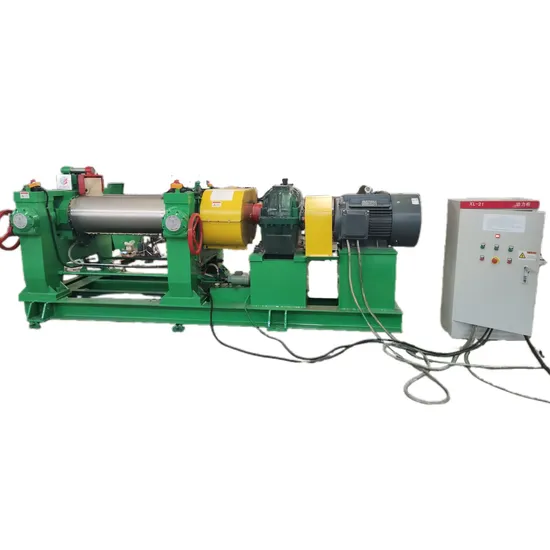

Advanced Two Roll Rubber Open Mixing Mill Machine, Rubber Mixer Machine
1Roller rotation for the bearing dry oil lubrication structure, with cycloid reducer directly connected to reduce the gear drive, durable noise, torque, motor power utilization, machine life; , Replacement of oil is simple and convenient.
Roller adjustment devices were used screw drive, easy to operate.
With emergency stop tumbler switch, pull down switch. Motor emergency stop, and immediately reverse to prevent the workers fingers or other hard objects into the rubber roller, the maximum guarantee of safe operation of workers and machines. Product Parameters
We can design and manufacture all kinds of non-standard rubber mixing mill according to the customers' definite requirements.

Item	XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660	XK-710
Roll diameter (mm)	160	250	360	400	450	550	560-510	660	710
Roll working length	320	620	900	1000	1200	1500	1530	2130	2200
Front roll linear speed (r/min)	9	16.3	16.7	19.3	21.8	22.5	27.2	28	31.9
Speed ratio of rolls	01: 01.4	01: 01.1	01: 01.3	01: 01.3	01: 01.3	01: 01.2	01: 01.2	01: 01.2	01: 01.5
Max roll space (mm)	4.5	8	10	10	12	16	15	0.5-15	0.5-15
Compound feeding capacity(kg)	1-2	10-15	20-25	18-35	50	50-65	50-65	165	190
Motor power(kw)	5.5	18.5	30	45	55	110	90	240	280
Dimensions(L× W× H)
L (mm)	1133	2722	4200	4920	5405	6646	6270	7280	8185
W (mm)	920	1115	1780	1780	1740	2736	2282	3400	3910
H (mm)	1394	1345	1760	1800	1790	2105	2000	2530	2270
Gross weight (T)	~2	~3.2	~6.5	~8	~11.4	~22	~22.5	~49	~51

Detailed Photos
Packaging & Shipping Packing method: Remove the motor and rotary joint, and pack the main body in an integrated manner. A small cabinet.
Company Profile Qingdao Boria Machinery Manufacturing Co., Ltd is recapitalized combination from Qingdao Bojia Machinery Manufacturing Co., Ltd in 2016. And Qingdao Bojia Machinery Manufacturing Co., Ltd.
changed officially its name from a state-owned machinery company in October 2007, is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group, often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which can meet requirements of the customers.Our company guarantee to provide you excellent pre-marketsale and after-sale service, timely technology information consulting, accessories and consumable parts supply etc, also can design & manufacture various non-standard products according to users' requirements.
Our main products are: Vulcanizing Press Series; Batch Off Cooling Machine Series;Open Mixing Mill Series; Rubber Cutting Machine Series; Rubber Slitting Machine Series; Longitudinal Cutting Machine Series; Cushion Cloth Renovating Machine Series; Conveying Belt Molding Machine Series; Conveyor Belt Machine Series; Other Rubber Machines; Design and manufacturing of Automatic Production Line.

Our Advantages Qingdao Boria Machinery is a professional machinery manufacturing enterprises, the company has all kinds of CNC precision machining equipment, processing power is strong; with independent professional rubber machinery design R & D team, and with China's long history of the most professional four One of the major rubber industry institutions, "Qingdao Institute of Chemical Technology" long-term rubber technology, formula, machinery and equipment, and other aspects of technology, practice and cooperation; Qingdao Boca machinery can be based on customer needs and customer technical parameters for equipment design and Ratio. At the same time the company focused on the automation of equipment research and development, manufacturing lines can be unmanned design, improve the user's labor productivity, reduce the labor intensity of workers, and stabilize product quality.
FAQ

1.Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport. If you have more information to learn, please send us a private message and we will provide you with the highest quality service.

---
