China Professional Heavy CNC Lathe for Turning Long Shaft, Propeller, Cylinder, Pipe

Product Description

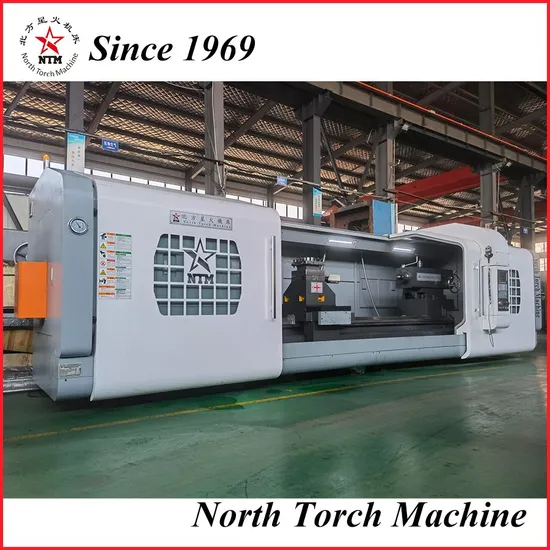

China Professional Horizontal CNC Lathe Machine with chip chain conveyor
For Turning long shaft, wheel,cylinder,Flange,Tyre Mold, Propeller, Impeller, HDPE Flange,Bearing,Wheel, Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,etc

Our company advantages:
1. We have our foundry which can control the casting parts quality very well. We have professional hardening/quenching furnace used for castings surface treatment to ensure high stability, rigidity and accuracy of horizontal lathe machine.
2. Professional machining equipment such as 12 meters long gantry CNC Grinding Machine, gantry milling machine, CNC Boring Machine, Drilling Machine, Horizontal CNC Lathe Machine for machine main parts like headstock , tailstock, guide rail ,cutting tool carriage, chuck turning
3. Professional technical team to provide both 3D & 2D drawings of horizontal Lathe Machines, roll turning lathe, Facing Lathe Machine, etc to customers after order confirmation and before production. In this designing method, we can make a perfect customized lathe machine for customers.
4. Immediate reply and actions of after-sale service about horizontal CNC Lathe , even after 15 years, we can also provide the easy damaged lathe machine parts and accessories immediately, becaue for each horizontal lathe machine and vertical lathe machines, we have one complete drawings. and we have enough spare parts for each lathe machine in stock.
1. Outstanding Characteristics:
All components of machine are imported foreign famous brands, such as FANUC or SIMENS Control System/ Schneider Electrical Control system, Japanese NSK Bearing, ABB Motor& transmission box/gear box, etc. We can also configurate per customer's special request and demands. Our Engineers can design different configurations according to different workpieces characteristics.
1.) This kind of horizontal lathe machine can be designed into CNC Milling Lathe which has functions of Milling and Turning, including screw thread, conical surface, curved surface, internal boring, etc.
2.) The standard horizontal lathe machine adopts frequency control system as its main drive system; driven by frequency control motor, the speed of main-shaft realizes stepless speed regulating, thus having different speeds to meet rational cutting speed requirements for the machining of different type of work-piece.It can be also intalled a servo motor per customer special request
3.) This lathe consists of lathe bed, selective headstock, tailstock, blade adapter, electric control system, lubrication system, and so on. Selective headstock and tailstock are installed at the left and right side of lathe bed respectively.
4.) The main shaft can realize stepless speed regulating in a range of 10~300r/min; and the main spindle front bearing adopts high-precision double row cylindrical roller bearings, having high-degree of rigidity and rotary precision and easy to adjust.
5.) High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Facing CNC Lathe Machine accessories and options:
1. 4 jaws chuck or 3 jaws self-centering chucks, all are available per customer's request and demands
2. Chuck cover or full metal cover for facing cnc lathe, semi-metal cover for horizontal lathe are optional
3. Chip Removal System, Chip conveyor are optional also .
4. Boring Bar Attachment , milling/drilling head unit / grinding wheel are all available to be installed on the lathe machne.
5. Horizontal 8 positions horizontal turret
Application: This CNC horizontal lathe is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of other shaft parts.
2. Standard Technical Parameters of Horizontal Facing CNC Lathe

CK61 series Horizontal CNC Lathe
	Model	Unit	CK6180	CK61125	CK61160	CK61200	CK61250
	Brand		NTM	NTM	NTM	NTM	NTM
Machining Technical Parameters	Max.swing diameter over machine bed	mm	800	1250	1600	2000	2500
	Max.swing diameter over cutting tool carriage	mm	450	850	1250	1650	2050
	Max.work-piece weight	T	2	6	15
	Max.work-piece length	mm	1500-20000
Machine Bed Parameters	Guide rail type	Rectangle	2 guide rail
	Guide rail width	mm	600	755	1600		2000
Headstock	Spindle speed		Stepless variable frequency
	Spindle speed range	r/min	20-400	10-210	6-160		4-106
	Main motor power	KW	11	15	22		30
	Centers	°	60
	Max.chuck diameter	mm	500	800	1250	1600	2000
	Max. chuck torque	knm	10	15	20		30
Feed Data	Max.X axis stroke	mm	400	625	800	1000	1250
	Max.Z axis stroke	mm	1500-20000
	Feed range of X Axis	mm	1-200
	Feed range of Z Axis	mm	1-200
	Feed speed of X axis	mm/min			3000
	Feed speed of Z axis	mm/min			2500
Tailstock	Diameter of tailstock sleeve	mm	140	180	240		300
	Stroke of tailstock sleeve	mm	300
	Taper of tailstock sleeve	°	60
	Rapid moving speed of tailstock	mm/min	Manually	1500
Other datas	Machine Length	mm	According to work-piece length
	Machine Width	mm	1500	2000	3500	3800	4000
	Machine Height	mm	1400	1800	2300	2600	3000
	Control system		SIEMENS, FANUC, GSK,KND etc

Rermarks:
1. The above 5 models of horizontal Facing CNC Lathes are the standard configurations, we can also design and manufacture customized lathe according to the user's workpiece features.
2. This series horizontal Lathe Machines have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
Foreign Customer's Praise for our Product and Management
3. After-sale Service and Maintenance of Horizontal Facing CNC Lathe

1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
