US$1,000.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Bucket Capacity-1
1.0~1.5m³
Bucket Capacity-2
0.5~1.0m&Sup3
Bucket Capacity-3
>1.5m&Sup3
Drive Type-1
Electric Drive
Transport Package
Standard
Product Description

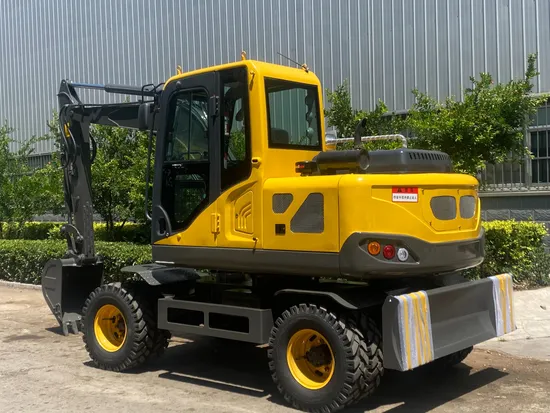

Detailed Photos
Product Parameters
| Basic parameters of the whole machine | Total weight | 6000KG |
| shipping length | 6246(mm) |
Total height during transportation | 2800(mm) |
Transport width | 2200(mm) |
| Tire center distance | 2400(mm) |
Counterweight ground clearance | 1035(mm) |
| umber of tires | 750-16 |
| Boom length | 3350(mm) |
| Stick length | 1900(mm) |
Working Range | Max.Digging Height | 6550(mm) |
| Max.Dumping Height | 4500(mm) |
| Max.Digging Depth | 3380(mm) |
| Max.Digging radius | 6590(mm) |
Maximum lifting height of earth shovel | 300(mm) |
The maximum digging depth of dozer | 100(mm) |
| Dynamical system | Model | |
| power | 48KW |
| Cooling method | water-cooling Turbo |
| Hydraulic System | Operating Pressure | 22mpa |
| Main pump | SGP1A2XFZH9 |
| | Korea |
| Shape |
Load Sensing System |
| performance parameter | (SAE)Bucket Capacity | 0.36m³ |
| Climbing ability | 30° |
| Maximum digging force | 8200N |
| Travel speed | 35KM/h |
| Unit swing speed | 9-11r/min |
| Hydraulic oil capacity | 90L |
| Hydraulic tank capacity | 120L |
| Parking brake | Air break |
| service brake | Kill |
| Stabilizers | /Legs / optional |
Company Profile
Product Description
Packaging & Shipping
FAQ
1: Are you factory or trading company?
A: We are factory focus in producing small size excavators.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs .
>>
