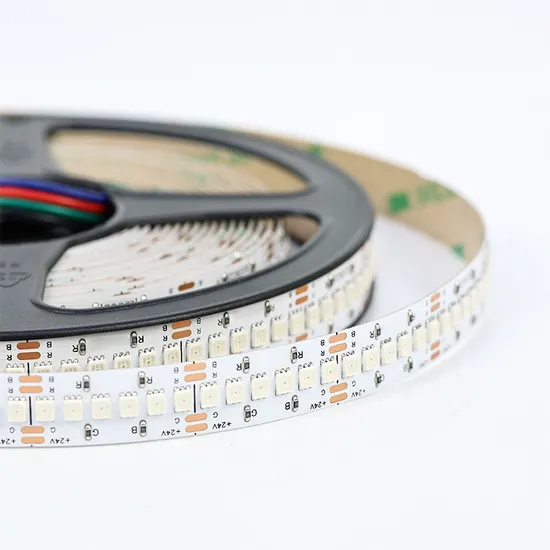

SMD3528 RGB LED Strip 240LEDs 24V Dimmable Tape Light

Product Description

High Bright 3528 RGB LED Strip 240LEDs/M for Decoration Lighting
Product Parameter:

Model	HSY-FS3528G240W12CRGBW16V24-P20
Light Source	SMD 3528
LED Quantity	240leds/m
Voltage	24V DC
Watt	16W Max
Lumen Efficiency(LM/W)	/
Color Temperature(K)	RGB
CRI	/
PCB Width	12mm
Min Cutting(mm)	25mm
Size ( L*W*H )	5000X12X1.3mm
Working Lifespan	>80000hours
Warranty	3-5years
Protection Rate	IP20/IP67/IP68
Packing	5/10/20(m/reel)
Trademark	HSY
Origin	Shenzhen
Delivery Time	3-4working Days (<5000m IP20 Order)
Net Weight	0.200kg
Working Temperature (ºC)	-20-60°
Adhesive Tape	Original 300LSE 3M tape
Dimmable	Yes
Certificate	TUV CE, FCC, RoHS, IEC/En62471,ETL

Advantages:
-High quality SMD LED
Our SMD LED Use the quality 3chips smd3528 RGB led as light source with 1500-1900mcd brightness and low lumen decline. RGB led ribbon strip is better dissipation, long lifespan and low light decline. SMD LED is compliant with TUV certificate, less than 5% lumen down after 50000H working.
-High quality double-side PCB
We use Electrolytic copper as PCB materrial, the electrolytic copper is equipped with a dual circuit board , which is better heat dissipation and more stable use.
-waterproof rating:
IP20 ( Bare Board ) be used indoor and keep away from rain wet
IP65 ( Silicone dropper ) fit on damp location (bathroom,kitchen and corridor...)
IP67 ( Silicone tube protection ) fit on indoor and outdoor
IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater
-Good color consistency and reliable quality
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.
Features as follow:
High Brightness, Multi-color, Energy saving
a, Use the quality 3chips smd3528 RGB led as light source with 1500-1900mcd brightness and low lumen decline.
b, Pure Red, Pure Green, Pure Blue color change and color fade, mixed color change.
c, Low power consumption, more than 1/3 energy saving than the traditional neon light.
Good reliability, flexible, strip length can be cut
a, Every 6leds 3528 RGB led as min unit of RGB strip, each unit work separately with high reliability.
b, White color flexible printed circuit board made by rolled copper material which is flexible and not easy to break.
c, Led strip can be cut or connected by 6leds/3leds min unit.
Support Data controller
3528 RGB strip can be controlled by IR or wireless controller, can be change the color, brightness, pattern.
Cost-effective and easy installation
a, Led strip is large mechanized production, it is economical and affordable.
b, Easy installing way
Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
Packaging and shipping : 1. Packaging: 5/10/20/30/50 meters/roll, 150 meters per carton
2. Delivery time: normally about 7-10 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
Company:
FAQ:
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 50m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal or Western Union, Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.

---
