Paper Ice Cream Coffee Tea Cup Making Machine in China

Product Description

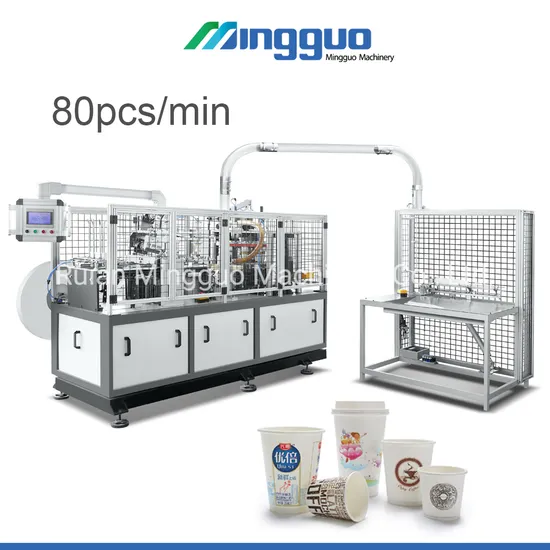

C700 Medium Speed Paper Cup Machine
Machine Characteristics
1.The machine adopts open cam type structure, high precision, large out-put and long life.
2.Longitudinal gear drive. This make up the chain drive jitter and instability's weakness.
3.Whole machine is box type structures design, filling oil by spray lubrication system. So that it can run fast and stably.
4.Photoelectric failure-detecting system is available. PLC sontrol ststem for the whole cup forming process.
5.Servo control to send bottom paper of cup, deliver bottom when cup tube come, otherwise no bottom delivery.
6.Stretch knife uses for bottom cutting. Easy changed and more stable.
7.Switzerland Leister heating device is equipped for cup body and bottom sealing, bottom are heated at first before they are feeding, this improving heating effect and helping guarantee knurling.
8.The knurling device adopts hardening treatment, make cup the cup knurling more beautiful and increase it use life.
9.Suitable for the production of 16-22oz paper cups.
Machine Details
Technical Specification

Model	MG-C700
Cups Specifications	4-16oz,16-22oz
Paper Specfications	150-350GSM single/double PE coated paper
Production Capacity	60-80pcs/min
Voltage	220V/380V 50HZ
Total Power	7KW
Total Weight	3000KG
Dimensions	2800*1300*1850mm(L*W*H)
Shipping Details	By sea/air transportation according to customer need
Paper Cup Usage	Tea cups, coffee cups, ice cream cups
Optional Equipmen	Paper cup machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.

Samples
Pre-sales and After-sales Service
Pre-sales service a.Provide products and related consultation. b.Free provision of paper cup samples (excluding freight). c.Customers can visit the factory in person to visit the machine. After-sales service: a.Paper cup machine warranty: 1 year b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period. c.We supply the consumable spare parts for free for one year use.
FAQ:
1:Are you a manufacturer?
Yes,We have been in making paper cup machine for nearly 7 years. We have our own workshop,and nearly 60 workers here.
2:What should I let you know before getting a relatively accurate quotation?
a.Cup size(Top diameter, Bottom diameter, Height).
b.Paper specification(GSM of single/double PE coated paper).
c.It is best to provide samples and pictures of the cup.
3:When the machine have problems,how you can solve it?
a.We have 1 year warranty, we can provide consumable spare parts for free
b.All machine will be installed and test well in factory,will test machine for one week.
c.If the machine has a technical problem, then you can send video and photo to us, we will develop solutions for you within 12 hours.
d.If the machine problem, you can not solve it by yourself, then we can dispatch the engineer to your factory. 4:Can we make different size in one machine?
You can make different size in one machine,but need change mold.

5:What about the payment term?
Mostly 30%T/T in advanced,the rest need paid before shipping.
6:What is your delivery time?
Within 40-50 days after receipt of advance payment and cup sample.If your order is urgent, please communicate with us.
