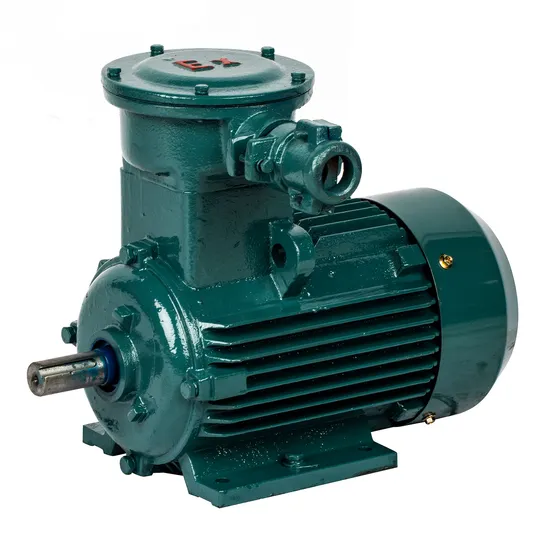

380V 50Hz 45 Kw 2 Poles Ye3 Three Phase High Efficiency Induction AC Electric Motor Ie3 CE Certification

Product Description

Why choose us ?
ELECTRIC MOTOR FEATURES
Electric motor frame from 56 - 355, output range from 0.17HP to 430HP
Motor mounting type B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101)
Optional voltage 110V, 120V, 220V, 240V, 220/380V, 230V/400V, 380V/660V, 50HZ or 60HZ
Protection type IP44, IP54, IP55 on request
Multiple mounting arrangement for optional
Aluminum frame, end shields and base
Strong cast iron frame
High strength cable
Shaft key and protector supplied
Superior paint finish
45# steel shaft and stainless steel shaft is optional
Electric motor continuous duty S1,S4
Electric motor have vacuum impregnation for insulation
Electric motor is class F insulation and class H insulation is optional
Electric motor has been make according to ISO9001, CE, UL, CCC, GS request
All of our products are make according to GOST, RoHS and IEC standard.
High performance and IE1, IE2, IE3 efficiency

OUR ELECRIC MOTOR FOR CUSTOMER BENEFITS
Electricity saving and quiet operation
Electric motor can withstand water, dust and vermin
Electric motor very easy installation
Electric motor dependable Corrosion resistant and long life to work
Reliability performance and very competitive price.

HOW TO MAKE MOTOR ON JUAO COMPANY
1. Silicon steel DR510, 800, 600, 360 standard use stamping of lamination stator and rotor die-casting
2. 100% copper winding and inserting stator (manual and semi-automatically)
3. Stator Vacuum impregnation and drying
4. CNC machining motor shaft, frame, end shields, etc
5. Professional workman inspecting spare parts every processing
6. Electric motor assembly product line
7. Electric motor will 100% test before painting.
8. Electric motor spray-paint on motor painting product line
9. Electric motor will 100% check again before packing.
An electric motor from material to finish motor, must pass 15 time check, and 100% testing, output power, voltage, electric current, non-load, 50% load, 75% load, 100% load and check the nameplate, packing. Finally shipping to our customer.
Att:Our company price was based on high height cold rolled steel stator to promise the efficiency ,if you need to cheaper ,you can choose short height stator or hot cold rolled steel stator ,thankyou
Product details

YE3 parameters
SYNCHRONOUS OUTPUT SPEED=3000RPM FREQUENCY=50HZ VOLTAGE=380V

MODEL	POWER (KW)	CURRENT (A)	SPEED (RPM)	EFF	POWER FACTOR	RATED TORQUE	TST	IST	TMAX	NOISE dB(A)
YE3-63M1-2	0.18kw	0.53	2720	63.9	0.8	0.63	2.2	5.5	2.2	61
YE3-63M2-2	0.25kw	0.7	2720	97.1	0.81	0.88	2.2	5.5	2.2	61
YE3-71M1-2	0.37kw	1	2740	69	0.81	1.29	2.2	6.1	2.2	62
YE3-71M2-2	0.55kw	1.4	2740	72.3	0.82	1.92	2.2	6.1	2.2	62
YE3-801-2	0.75kw	1.8	2830	80.7	0.83	2.5	2.2	7	2.3	62
YE3-802-2	1.1kw	2.5	2840	82.7	0.83	3.65	2.2	7.3	2.3	62
YE3-90S-2	1.5kw	3.4	2840	84.2	0.84	4.97	2.2	7.6	2.3	67
YE3-90L-2	2.2kw	4.8	2840	85.9	0.85	7.3	2.2	7.6	2.3	67
YE3-100L-2	3kw	6.3	2870	87.1	0.87	9.95	2.2	7.8	2.3	74
YE3-112M-2	4kw	8.2	2890	88.1	0.88	13.1	2.2	8.3	2.3	77
YE3-132S1-2	5.5kw	11.1	2900	89.2	0.88	17.9	2	8.3	2.3	79
YE3-132S2-2	7.5kw	15	2900	90.1	0.89	24.4	2	7.9	2.3	79
YE3-160M1-2	11kw	21.3	2930	912	0.89	35.6	2	8.1	2.3	81
YE3-160M2-2	15kw	28.7	2930	91.9	0.89	48.6	2	8.1	2.3	81
YE3-160L-2	18.5kw	34.7	2930	92.4	0.89	60	2	8.2	2.3	81
YE3--180M-2	22kw	41.2	2940	92.7	0.89	71.2	2	8.2	2.3	83
YE3-200-L1-2	30kw	55.3	2950	93.3	0.89	96.6	2	7.6	2.3	84
YE3-200L2-2	37kw	67.9	2950	93.7	0.89	119	2	7.6	2.3	84
YE3-225M-2	45kw	82.1	2970	94	0.89	145	2	7.7	2.3	86
YE3-250M-2	55kw	100.1	2970	94.3	0.89	177	2	7.7	2.3	89
YE3-280S-2	75kw	134	2970	94.7	0.89	241	1.8	7.1	2.3	91
YE3-280M-2	90kw	160.2	2970	95	0.89	289	1.8	7.1	2.3	91

SYNCHRONOUS OUTPUT SPEED=1500RPM FREQUENCY=50HZ VOLTAGE=380V

MODEL	POWER (KW)	CURRENT (A)	SPEED (RPM)	EFF	POWER FACTOR	RATED TORQUE	TST	IST	TMAX	NOISE dB(A)
YE3-63M1-4	0.12kw	0.45	1310rpm	55.8	0.72	0.87	2.1	4.4	2.2	52
YE3-63M2-4	0.18kw	0.64	1310rpm	58.6	0.73	1.31	2.1	4.4	2.2	52
YE3-71M1-4	0.25kw	0.81	1330rpm	63.6	0.74	1.8	2.1	5.2	2.2	55
YE3-71M2-4	0.37kw	1.1	1330rpm	65.3	0.75	2.66	2.1	5.2	2.2	55
YE3-801-4	0.55kw	1.4	1390rpm	80.6	0.75	3.67	2.3	6.5	2.3	56
YE3-8002-4	0.75kw	1.9	1390rpm	82.5	0.75	5.01	2.3	6.6	2.3	56
YE3-90S-4	1.1kw	2.7	1400rpm	84.1	0.76	7.35	2.3	6.8	2.3	59
YE3-90L-4	1.5kw	3.6	1400rpm	85.3	0.77	10	2.3	7	2.3	59
YE3-100L1-4	2.2kw	4.8	1430rpm	86.7	0.81	14.6	2.3	7.6	2.3	64
YE3-100L2-4	3kw	6.6	1430rpm	87.7	0.82	19.9	2.3	7.6	2.3	64
YE3-112M-4	4kw	8.6	1440rpm	88.6	0.82	26.3	2.2	7.8	2.3	65
YE3-132S-4	5.5kw	11.6	1440rpm	89.6	0.83	35.9	2	7.9	2.3	71
YE3-132M-4	7.5kw	14.6	1440rpm	90.4	0.84	48.9	2	7.5	2.3	71
YE3-160M-4	11kw	22.6	1460rpm	91.4	0.85	71.5	2	7.7	2.3	73
YE3-160L-4	15kw	29.3	1460rpm	92.1	0.86	97.4	2	7.8	2.3	73
YE3-180M-4	18.5kw	35.45	1470rpm	92.6	0.86	120	2	7.8	2.3	76
YE3-180L-4	22kw	42.35	1470rpm	93	0.86	143	2	7.8	2.3	76
YE3-200L-4	30kw	57.6	1475rpm	93.6	0.86	194	2	7.3	2.3	76
YE3-225S-4	37kw	69.8	1480rpm	93.9	0.86	239	2	7.4	2.3	78
YE3-225M-4	45kw	84.5	1480rpm	94.2	0.86	290	2	7.4	2.3	78
YE3-250M-4	55kw	103.1	1485rpm	94.6	0.86	354	2	7.4	2.3	79
YE3-280S-4	75kw	139.7	1490rpm	95	0.88	481	2	6.7	2.3	80
YE3-280M-4	90kw	166.9	1485rpm	95.2	0.88	577	2	6.9	2.3	80

SYNCHRONOUS OUTPUT SPEED=1000RPM FREQUENCY=50HZ VOLTAGE=380V

MODEL	POWER (KW)	CURRENT (A)	SPEED (RPM)	EFF	POWER FACTOR	RATED TORQUE	TST	IST	TMAX	NOISE dB(A)
YE3-71M1-6	0.18kw	0.76	850rpm	54.6	0.66	2.02	1.9	4	2	52
YE3-71M2-6	0.25kw	0.97	850rpm	57.4	0.68	2.81	1.9	4	2	52
YE3-80M1-6	0.37kw	1.2	890rpm	68	0.7	3.88	1.9	5.5	2.1	54
YE3-80M2-6	0.55kw	1.7	890rpm	72	0.71	5.68	1.9	5.8	2.1	54
YE3-90S-6	0.75kw	2.2	910rpm	78.9	0.71	7.58	2	6	2.1	57
YE3-90L-6	1.1kw	3.8	910rpm	81	0.73	11.1	2	6	2.1	57
YE3-100L-6	1.5kw	3.8	940rpm	82.5	0.73	15.1	2	6.5	2.1	61
YE3-112M-6	2.2kw	5.4	940rpm	84.3	0.74	21.8	2	6.6	2.1	65
YE3-132S-6	3kw	7.4	960rpm	85.6	0.74	29.4	1.9	6.8	2.1	69
YE3-132M1-6	4kw	9.6	960rpm	86.8	0.74	39.2	1.9	6.8	2.1	69
YE3-132M2-6	5.5kw	12.9	960rpm	88	0.75	53.9	2	7	2.1	69
YE3-160M-6	7.5kw	17	970rpm	89.1	0.79	73.1	2.1	7	2.1	70
YE3-160L-6	11kw	24.2	970rpm	90.3	0.8	107	2.1	7.2	2.1	70
YE3-180L-6	15kw	31.6	970rpm	91.2	0.81	146	2	7.3	2.1	73
YE3-200L1-6	18.5kw	38.1	970rpm	91.7	0.81	179	2.1	7.3	2.1	73
YE3-200L2-6	22kw	44.5	970rpm	92.2	0.81	213	2.1	7.4	2.1	73
YE3-225M-6	30kw	58.6	980rpm	92.9	0.83	291	2	6.9	2.1	74
YE3-250M-6	37kw	71	980rpm	93.3	0.84	359	2.1	7.1	2.1	76
YE3-280S-6	45kw	85.9	980rpm	93.7	0.85	434	2.1	7.3	2.1	78
YE3-280M-6	55kw	104.7	980rpm	94.1	0.86	531	2.1	7.3	2.1	78

SYNCHRONOUS OUTPUT SPEED=750RPM FREQUENCY=50HZ VOLTAGE=380V

MODEL	POWER (KW)	CURRENT (A)	SPEED (RPM)	EFF	POWER FACTOR	RATED TORQUE	TST	IST	TMAX	NOISE dB(A)
YE3-801-8	0.18kw	0.81	630rpm	56	0.61	2.5	1.8	3.3	1.9	52
YE3-802-8	0.25kw	1.1	640rpm	59	0.61	3.4	1.8	3.3	1.9	52
YE3-90S-8	0.37kw	1.4	660rpm	66	0.61	5.1	1.8	4	1.9	56
YE3-90L-8	0.55kw	2.1	660rpm	70	0.61	7.6	1.8	4	2	56
YE3-100L1-8	0.75kw	2.4	690rpm	73.5	0.67	10.2	1.8	4	2	59
YE3-100L2-8	1.1kw	3.4	690rpm	76.5	0.69	14.9	1.8	5	2	59
YE3-112M-8	1.5kw	4.4	680rpm	77.5	0.7	20	1.8	5	2	61
YE3-132S-8	2.2kw	6	710rpm	80	0.71	28.8	1.8	6	2	64
YE3-132M-8	3kw	7.9	710rpm	82.5	0.73	39.2	1.8	6	2	64
YE3-160M1-8	4kw	10.2	720rpm	85	0.73	52.7	1.9	6	2	68
YE3-160M2-8	5.5kw	13.6	720rpm	86	0.74	82.4	1.9	6	2	68
YE3-160L-8	7.5kw	17.8	720rpm	87.5	0.75	98.1	1.9	6	2	68
YE3-180L-8	11kw	25.2	730rpm	89	0.75	145	2	6.5	2	70
YE3-200L-8	15kw	34	730rpm	90.4	0.76	196	2	6.6	2	73
YE3-225S-8	18.5kw	40.5	740rpm	91.2	0.76	240	1.9	6.6	2	73
YE3-225M-8	22kw	47.3	740rpm	91.5	0.78	286	1.9	6.6	2	73
YE3-250M-8	30kw	63.4	740rpm	92.2	0.79	390	1.9	6.5	2	75
YE3-280S-8	37kw	76.8	740rpm	93	0.79	478	1.9	6.6	2

FAQ Q1: What about the shipping methods?
1): For urgent order and light weight, you can choose the following express: UPS, FedEx, TNT, DHL, EMS.
For heavy weight, you can choose to deliver the goods by air or by sea to save cost.
Q2: What about the payment methods?
A2: We accept T/T, L/C for big amount, and for small amount, you can pay us by PayPal, Western Union etc.
Q3: How much does it cost to ship to my country?
A3: It depends on seasons. Fee is different in different seasons. You can consult us at all times.
Q4: What's your delivery time?
A4: Usually we produce within 25-30days after the payment came.
Q5: Can I print our logo/code/series number on your motor?
A5: Yes, of course.
Q6: Can I order some sample for our testing?
A6: Yes, but it needs some expenses.
Q7: Can you customize my product in special requirement?
A7: Yes, we can offer OEM.
Q8: What is your max temperature of motor ?
A8: 150 -250 degree can customized with special wire

---
