Automatic High Speed Paper Cup Forming Machine Lf-110

Product Description

Product Description Machine Description:

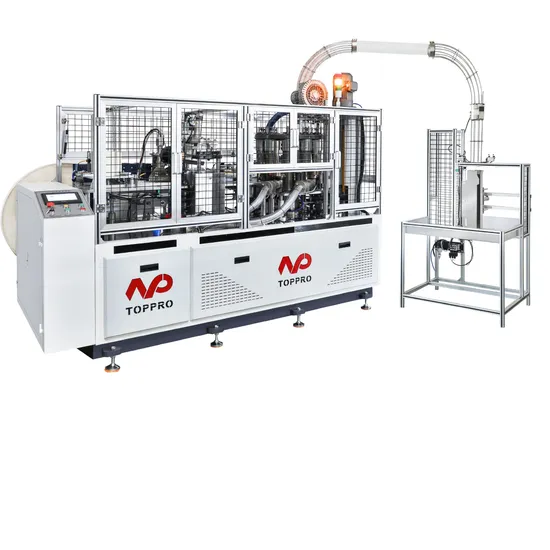

LF-110 MID-speed paper cup forming machine is a multi station high-speed automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking. The machine adopting hot air system, PLC control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc.
Product Parameters

Name	Middle Speed Paper Cup Machine
HS Code	8441309000
Model	LF-110
The machine includes: Finished cup Collect System
Paper cup Size	TOP DIAMETER=70mm-95mm	BOTTOM DIAMETER=48mm-63mm
	CUP HEIGHT=46mm-135mm	BOTTOM DEPTH =5mm-10mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	100-120pcs/min
	Speed of 20 hours stable running per day
Suitable paper weight	190-350gsm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.5-0.8Mpa, 0.4m3/min User should buy Air Compressor
General power	11kw
Net weight	2700kgs
Measurement (mm)	2300*1250*1800
Cup Side Sealing	Ultrasonic sealing
We can customize machine and mold according to customer's requirement.

Our Advantages Machine advantage:
1. Machine Main part uses the Geneva open cam (as the picture New on left), instead of old dividing box transmission, makes driving more accurate, faster, and more reliable stability 2. Machine bottom is made by CNC machining, shaped in one-piece, the thickness is more than others' and heavier. It can improve the precision for each part, also help to stable the open cam long time running. The table also to be one piece, and completely closed design to make sure material can't go to driving system.
3. he sliding block is imported from Taiwan, instead of the old linear bearing design, this block has a long lifetime, and high precision.
4. The bottom paper feeding is adopted Two channel sending system, first use stepper motor transport, second adopt stepper motor precision feeding, to ensure accuracy and avoid waste. For old design, will have high waste also will produce much scraps of paper during production.
5. Bottom heaters we add the Hot air heating system, to form cup bottom at a short time and high quality. 6.This machine has automatic lubrication system, ensure the machine to keep long time running stably. The design of the oil pipe, can lubricate each point more accurately. We also add filter screen to keep the lifetime of oil core. Also this machine has oil pump and two valves, one valve for controlling the oil quantity, one is convenient to change oil. 7. The main motor with brake, can set the testing stop positioning, debugging positioning to be higher precision, also to ensure the safety of debugging person. 8. Imported electrical parts and PLC controlling, easy operation on touch screen, makes machine more intelligent.
Company Profile FACTORY VIEWE
Wenzhou Toppro Machinery Co., Ltd (old name:Ruian Lifeng Machinery Co., Ltd.) is a manufactory specialize in producing series of automatic machinery for paper contaciners like paper cup making machine, paper bowl forming machine, ice cream cone sleeve machine, die punching machine etc.Especially the water cone cup machine, we get the patent in China.And all of our products have past CE, SGS.In last 10years, we exported to all of the world and get good feedback from our customers.
We pursue "quality first, service paramountcy".Welcome the clients at home and abroad to negotiate and cooperate.

FAQ
Q1.Are you trade company or factory?
We are factory, not trade company
Q2.Where is your factory and how to get there?
Our factory location is 7# yongding road, songjiadai industrial park, feiyun town, ruian city, zhejiang province.China
You can by plane from your country to wenzhou city airport, then we will pick you up by car.
Q3.What certification do you have?
We have CE, BV and SGS certification.
Q4.What is your delivery time?
Our mahcine need 25 -30 days in normal, if your order is urgent, we can descuss aout that.
Q5, what is the HS code?
Our machine HS code is 8441309000
Q6, when the machine have problems,how you can sove it?
Firslty,we have 1 year warranty,we can provide comsumable spare parts for free
Secondly,all machine will be insatalled and test well in factory,we will test machine for one week,and make sure when you receive machine,can start prodcution at once,
Thirdly,if when you receive machine,the machine can not run well,then you can send video and photo to us,we are 24 hours avaliable for you,and will teach you step by step,help you slove problem,
Forthly,if the machine problem,you can not slove it by yourself,then we can dispatch the engineer to your factory.
Q7, what is the manual and instruction language?
The manual and instruction all will use english language,if you want use your country language,it also can be customized,and we also will send you a operation video,teach you how to change mold and operate machine,

---
